제품소개

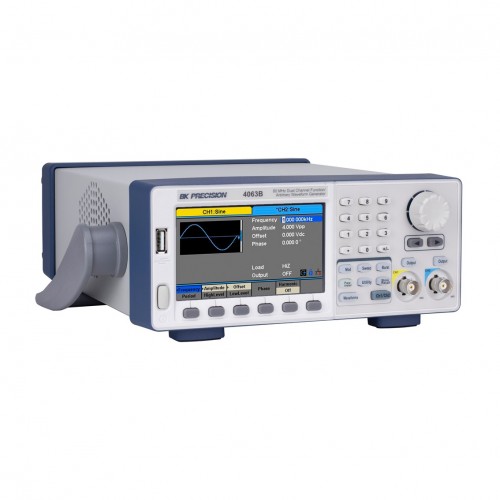

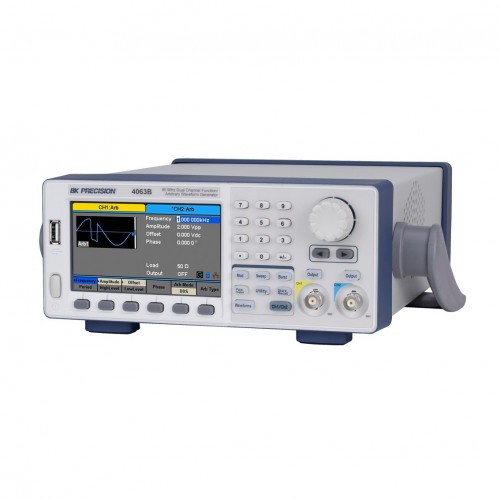

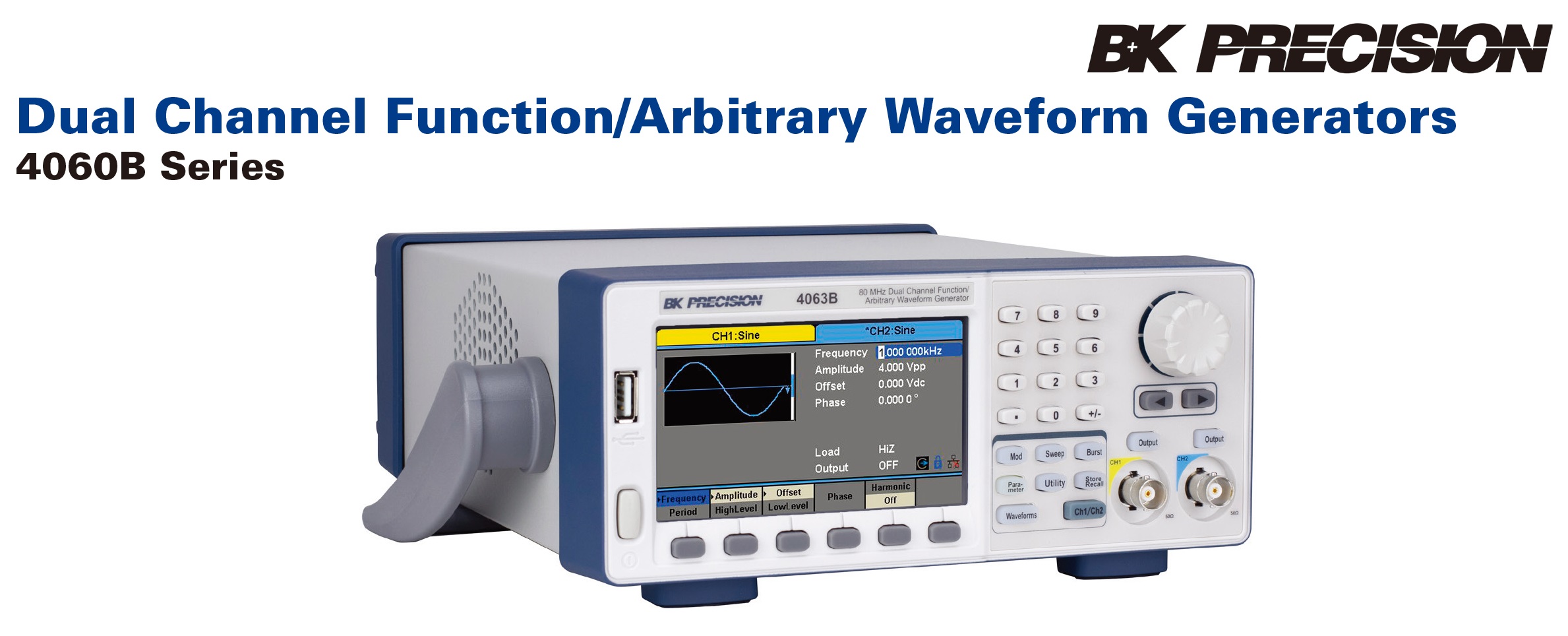

The 4060B Series Dual Channel Function/Arbitrary Waveform Generators are capable of generating stable and precise sine, square, triangle, pulse, and arbitrary waveforms. This series combines the cost saving benefits of DDS and true point-by-point arbitrary architectures to meet a wide range of applications that require high signal fidelity and low jitter arbitrary waveforms. With an easy-to-read color display and intuitive user interface with numeric keypad, these instruments offer plenty of features including linear/logarithmic sweep, burst mode, and variable DC offset. Generate custom arbitrary waveforms using the included application software, or select from the 196 built-in arbitrary waveforms.

제품특징

• 300 MSa/s (DDS), 75 MSa/s (true point-by-point) arbitrary waveform generator

• Up to 1.2 GSa/s sample rate for sine, square, triangle, and pulse waveforms

• 16-bit resolution, 8 Mpt arbitrary waveform length

• Two independent channels with one button phase synchronization

• Channel copy, track, and waveform combine functions

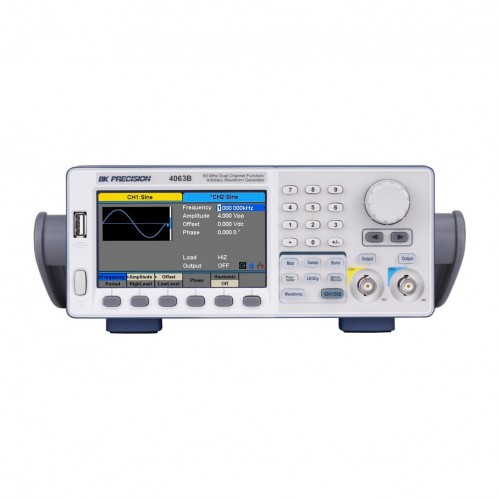

• 4.3-inch touch screen display

• Linear and logarithmic sweep

• AM/DSB-AM/FM/PM/PSK/FSK/ASK and PWM modulation types

• Variable DC offset

• Overvoltage protection

• Internal/external triggering

• Gate and burst mode

• 196 built-in predefined arbitrary waveforms

• Frequency counter

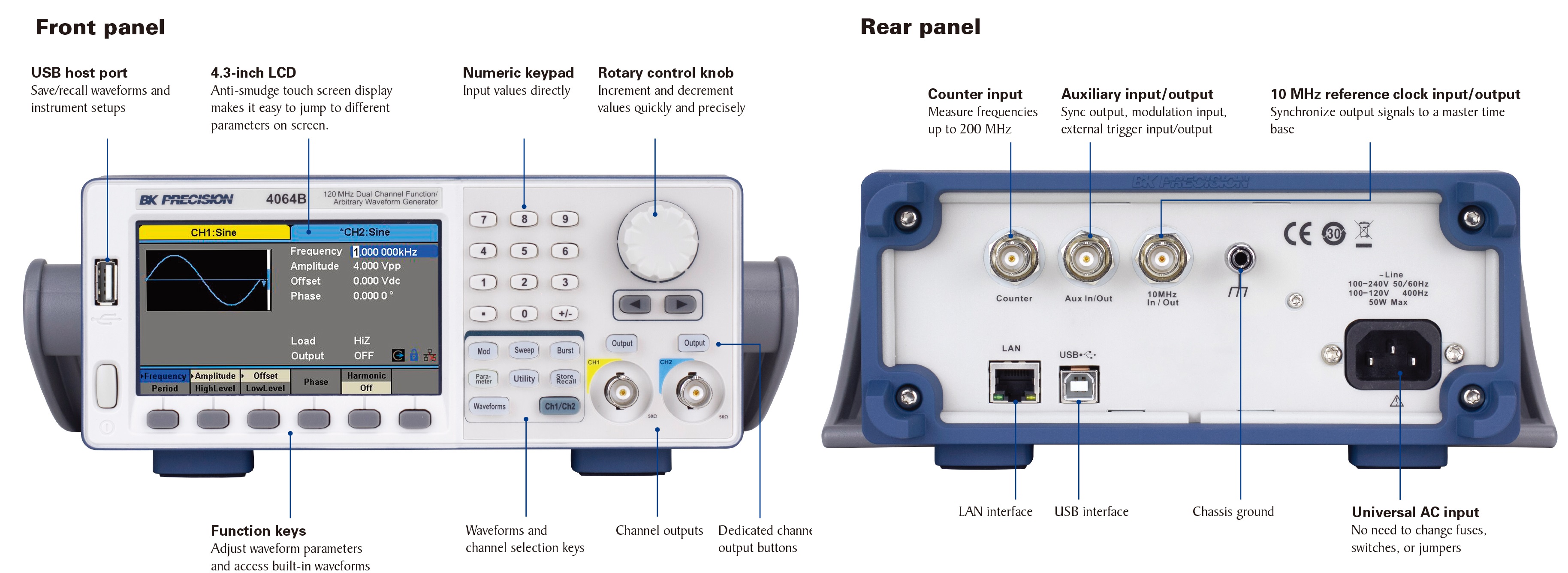

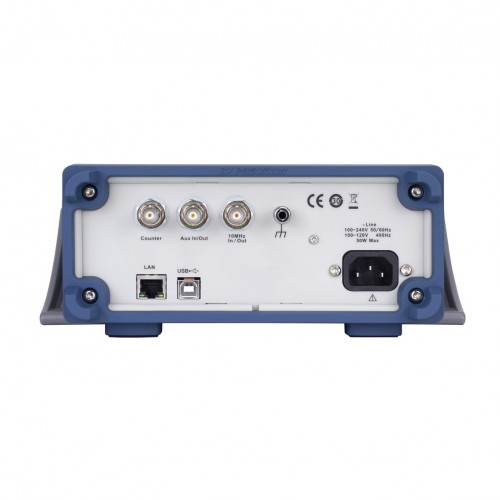

• LAN and USB device (USBTMC-compliant) with front panel USB host port

• GPIB connectivity with optional USB-to-GPIB adapter (model AK40G)

• LabVIEW drivers available
