Output

Rated Voltage

DC 0~100% full range adjustable

Rated Current

DC 0~100% full range adjustable

OVP Range

DC 0~105% of rated voltage adjustable

Line Regulation

CV≤0.1%+2LSB, CC≤0.2%+2LSB

Load Regulation

CV≤0.1%+2LSB, CC≤0.1%+2LSB

Ripple & Noise

≤50mV / 100mV / 200mV

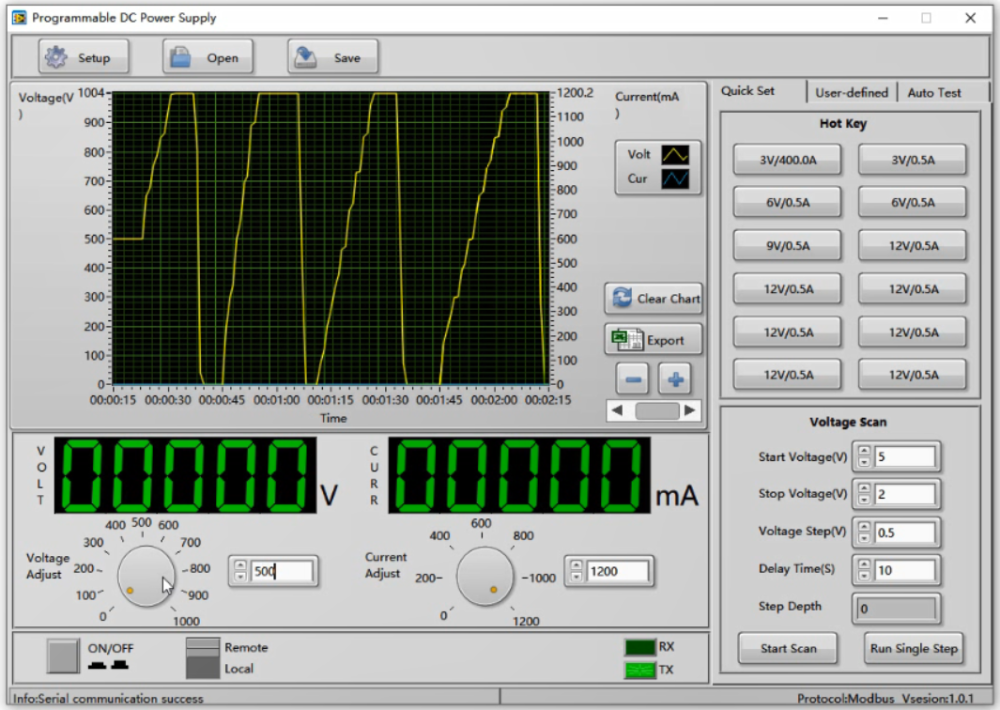

Programming

Programming Resolution

Voltage

0.001V / 0.01V/ 0.1V

Current

0.001A / 0.01A/ 0.1A

OVP

0.001V / 0.01V/ 0.1V

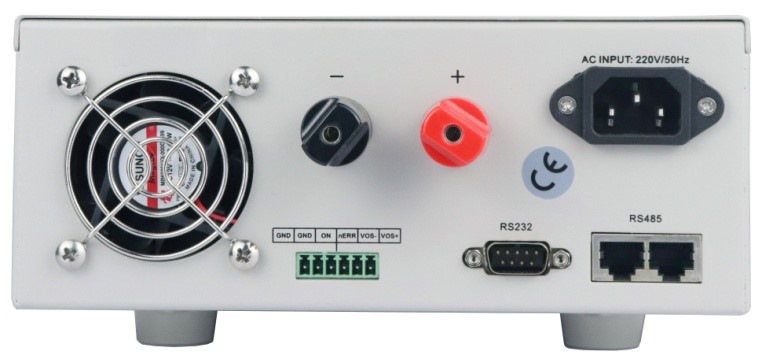

Interface

RS232 and RS485

Commands

ModBus-RTU

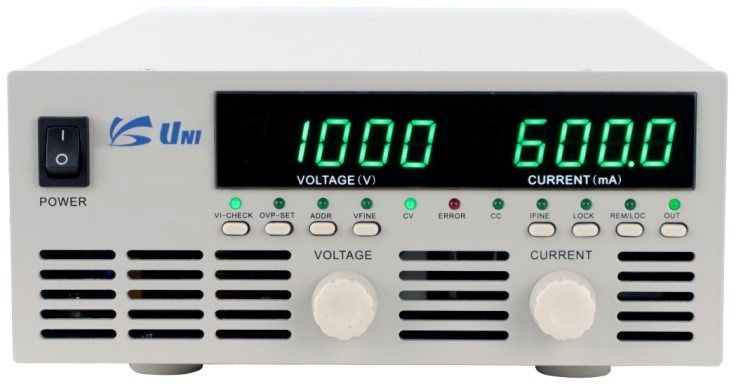

Display

Meter

4 1/2 digits LED display for voltage and current

Display Resolution

Voltage

0.001V / 0.01V/ 0.1V

Current

0.001A / 0.01A/ 0.1A

Display Accuracy

Voltage

≤0.2%FS+2LSB

Current

≤0.5%FS+2LSB

Protection

Over Voltage Protection (O.V.P.)

Built-in OVP protection with limit of 105% rated output voltage.

The output will be shut down when OVP is activated.

Over Temperature Protection (O.T.P.)

Built-in OTP protection with heat sink temperature limit of 105℃±5℃.

The output will be shut down when OTP is activated.

Under Voltage Protection

(U.V.P.)

Built-in UVP protection with limit of 165Vac.

The output will be shut down when UVP is activated.

General

Cooling method

Cooling fan

Operating environment

0℃~40℃, 10%~80%RH

Storage environment

-20℃~70℃, 10%~90%RH

Model

(600W)

Rated Output

Voltage Ripple

Programming Resolution

Display Resolution

V

A

OVP

V

A

OVP

V

A

UPL600-1H
