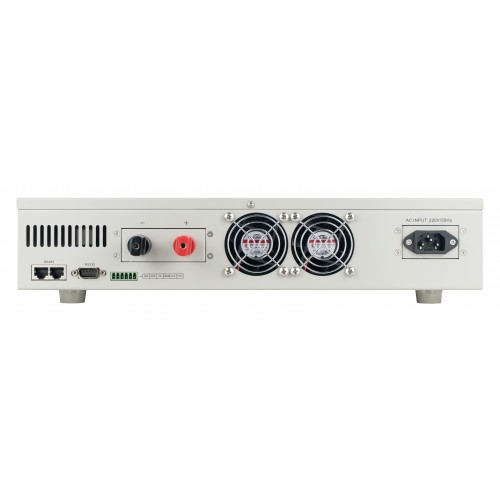

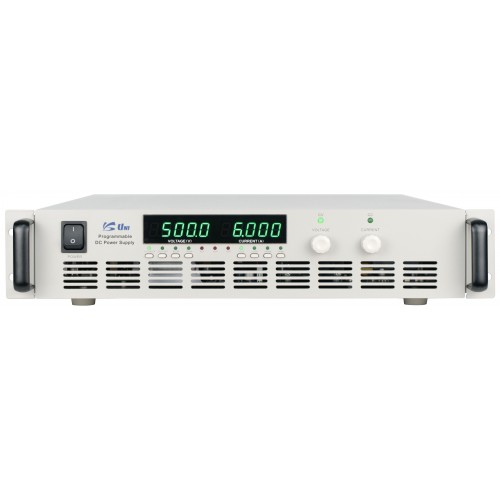

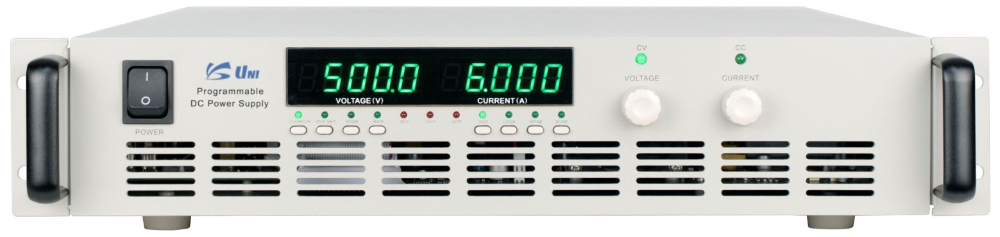

유니 - UPL2400-6H 고전력 프로그래머블 DC파워 0~600V/0~4A/2400W/단상 DC전원공급기 RS232, RS485, Support ModBus-RTU commands
UPL 시리즈는 고출력 스위칭 직류 전원으로 정격 전력은 600W~15KW입니다. UPL 시리즈는 ZVZCS PWM 기술을 채택하여 스위칭 소모를 크게 줄여 고효율 및 안정성으로 스위칭 기능을 용이하게 합니다.
UPL 시리즈는 2U/3U 19인치 표준 섀시에 내장되어 있습니다. 최대 정격 전압은 6V에서 1000V까지, 최대 정격 전류는 2A에서 1000A까지입니다. RS232 및 RS485 통신 인터페이스는 UPL 시리즈의 표준 부품으로 제작되어 디지털 제어를 위해 다양한 통신 옵션을 제공합니다.
[ 주요 특징 ]
* ZVZCS PWM 기술 채택, 고효율 및 고안정성
* 전압 및 전류에 대한 4 1/2자리 LED 디스플레이
* 최대 정격출력 600W~15KW
* 최대 정격 전압 6V ~ 1000V
* 2A에서 1000A까지의 최대 정격 전류
* 온도 조절 팬, 저소음
* 낮은 리플, 높은 안정성
* 시동 중 오버슈트 없음
* 목록 모드 기능, 자동 실행 기능
* 원격 감지 기능
* 조정 가능한 전압 상승 시간
* 사전 설정 기능, 전압 및 전류 설정(출력 단선)
* 다중 보호: OVP, OTP, UVP 및 전류 제한 보호
* 다중 프로그래밍 인터페이스: RS232 및 RS485, ModBus-RTU 명령
* 옵션 기능: 0-5V, 0-10V 또는 4-20mA 아날로그 제어 및 전압 및 전류 피드백

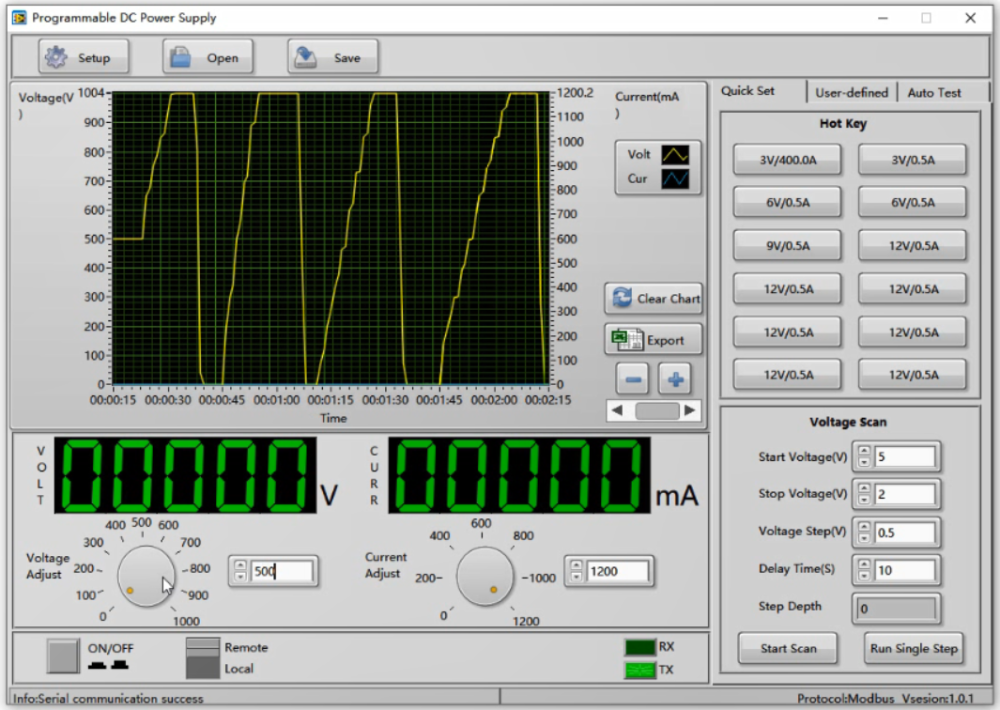

[ 무료PC 소프트웨어 ]
다중 리모컨 및 샘플링 기능: 전압 및 전류 설정, 전압 및 전류 피드백, 데이터 기록, EXCEL로 데이터 내보내기, List mode 기능, auto run 기능. 전압 상승 시간 조절 가능

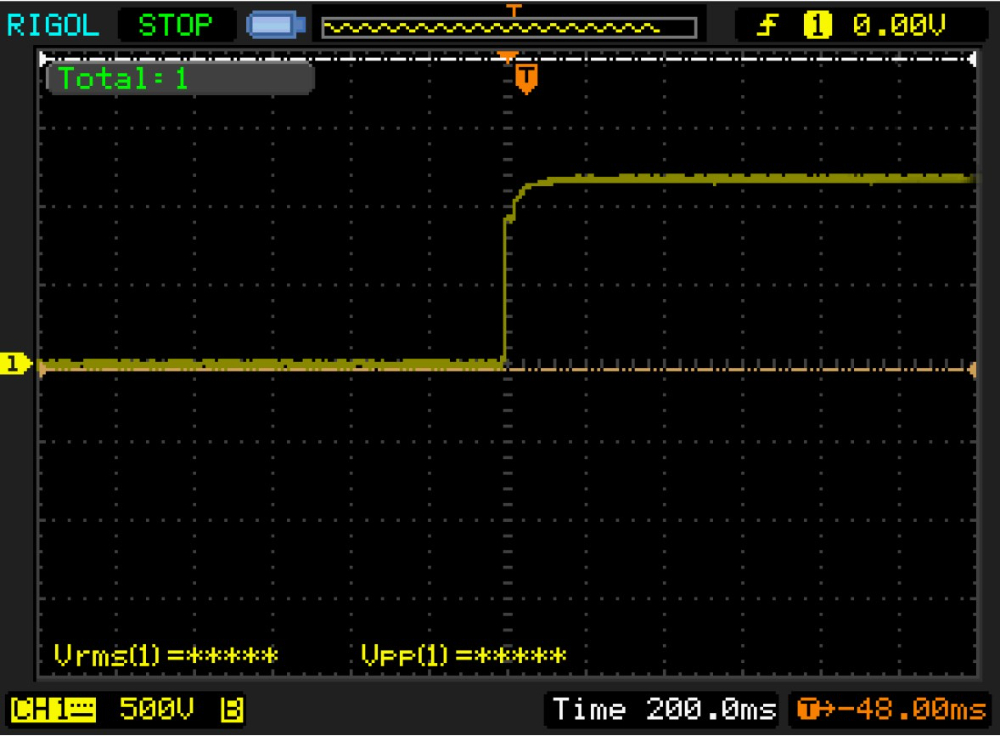

[ No overshoot ]

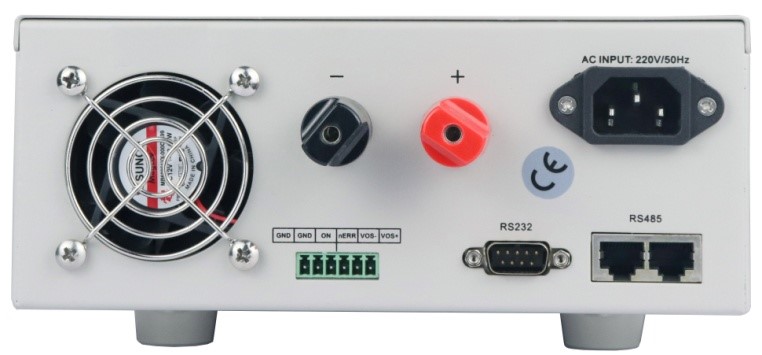

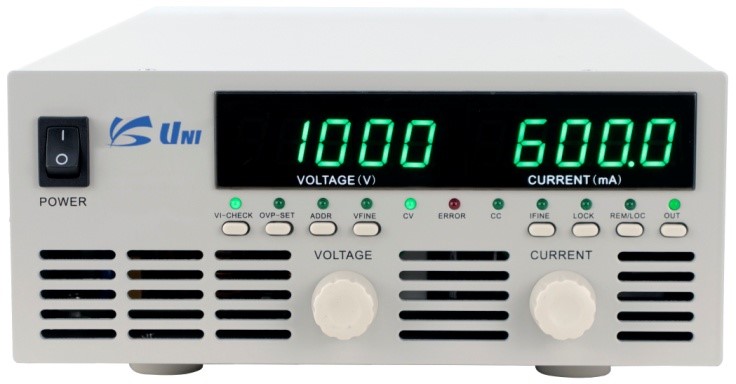

[ 1/2 2U frame for 600W~1200W ]

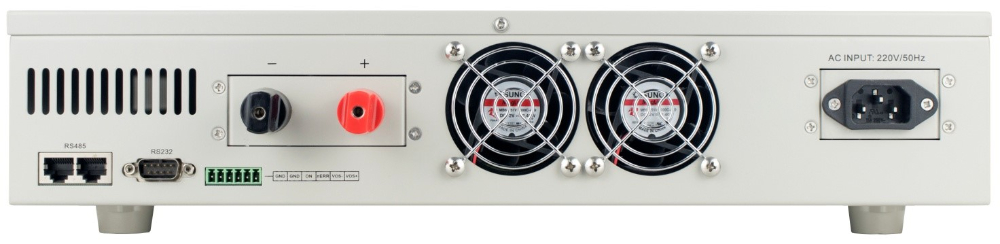

[ 2U frame for 1.2kW~5kW ]

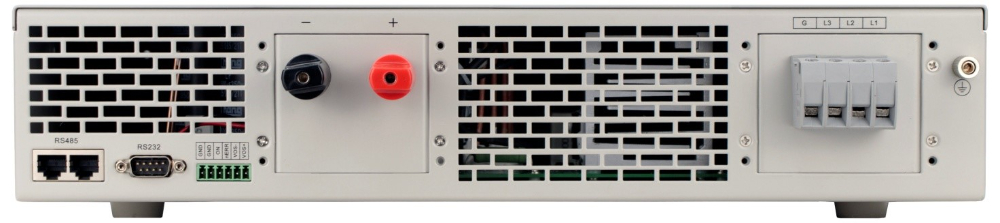

[ 380Vac input for 4kW~5kW ]

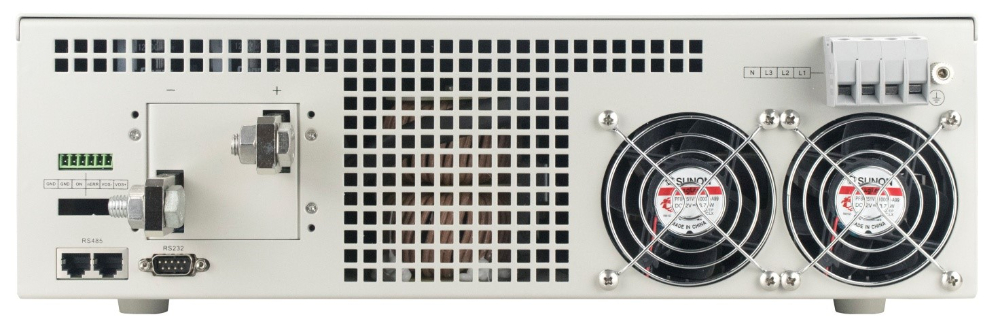

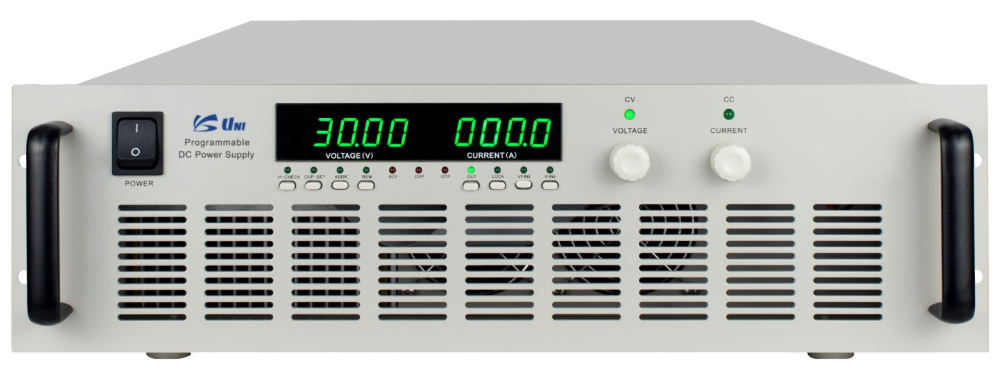

[ 3U frame for 6kW~9kW ]
[ 모델별 사양 ]
|
Output
|
|
Rated Voltage
|
DC 0~100% full range
adjustable
|
|
Rated Current
|
DC 0~100% full range
adjustable
|
|
OVP Range
|
DC 0~105% of rated voltage
adjustable
|
|
Line Regulation
|
CV≤0.1%+2LSB, CC≤0.2%+2LSB
|
|
Load Regulation
|
CV≤0.1%+2LSB, CC≤0.1%+2LSB
|
|
Ripple & Noise
|
≤50mV
/ 100mV /
200mV
|
|
Programming
|
|
Programming Resolution
|
Voltage
|
0.001V / 0.01V/ 0.1V
|
|
Current
|
0.001A / 0.01A/ 0.1A
|
|
OVP
|
0.001V / 0.01V/ 0.1V
|
|
Interface
|
RS232 and RS485
|
|
Commands
|
ModBus-RTU
|
|
Display
|
|
Meter
|
4
1/2 digits LED display for voltage and current
|
|
Display Resolution
|
Voltage
|
0.001V / 0.01V/ 0.1V
|
|
Current
|
0.001A / 0.01A/ 0.1A
|
|
Display Accuracy
|
Voltage
|
≤0.2%FS+2LSB
|
|
Current
|
≤0.5%FS+2LSB
|
|
Protection
|
|
Over
Voltage Protection (O.V.P.)
|
Built-in
OVP protection with limit of 105% rated output voltage.
The
output will be shut down when OVP is activated.
|
|
Over
Temperature Protection (O.T.P.)
|
Built-in
OTP protection with heat sink temperature limit of 105℃±5℃.
The
output will be shut down when OTP is activated.
|
|
Under
Voltage Protection
(U.V.P.)
|
Built-in
UVP protection with limit of 165Vac.
The
output will be shut down when UVP is activated.
|
|
General
|
|
Cooling method
|
Cooling fan
|
|
Operating environment
|
0℃~40℃,
10%~80%RH
|
|
Storage environment
|
-20℃~70℃, 10%~90%RH
|
|
Model
(600W)
|
Rated Output
|
Voltage Ripple
|
Programming Resolution
|
Display Resolution
|
|
V
|
A
|
OVP
|
V
|
A
|
OVP
|
V
|
A
|
|
UPL600-1H
|
0~100V
|
0~6A
|
0~105V
|
≤100mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL600-150
|
0~150V
|
0~4A
|
0~157.5V
|
≤100mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL600-2H
|
0~200V
|
0~3A
|
0~210V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL600-3H
|
0~300V
|
0~2A
|
0~315V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL600-4H
|
0~400V
|
0~1.5A
|
0~420V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL600-5H
|
0~500V
|
0~1.2A
|
0~525V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
Dimensions
|
212.5Wx88Hx340D
mm (1/2 2U)
|
|
Weight
|
Approx
5kg
|
|
AC Input
|
1φ3W (L,
N, PE), 220V±10% 47~63Hz
|
|
Model
(1200W)
|
Rated Output
|
Voltage Ripple
|
Programming Resolution
|
Display Resolution
|
|
V
|
A
|
OVP
|
V
|
A
|
OVP
|
V
|
A
|
|
UPL1200-20S
|
0~20V
|
0~60A
|
0~21V
|
≤50mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL1200-30S
|
0~30V
|
0~40A
|
0~31.5V
|
≤50mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL1200-60S
|
0~60V
|
0~20A
|
0~63V
|
≤50mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL1200-1HS
|
0~100V
|
0~12A
|
0~105V
|
≤100mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL1200-120S
|
0~120V
|
0~10A
|
0~126V
|
≤100mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL1200-150S
|
0~150V
|
0~8A
|
0~157.5V
|
≤100mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL1200-2HS
|
0~200V
|
0~6A
|
0~210V
|
≤100mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL1200-3HS
|
0~300V
|
0~4A
|
0~315V
|
≤100mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL1200-4HS
|
0~400V
|
0~3A
|
0~420V
|
≤100mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL1200-5HS
|
0~500V
|
0~2.4A
|
0~525V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL1200-6HS
|
0~600V
|
0~2A
|
0~630V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
Dimensions
|
212.5Wx88Hx340D
mm (1/2 2U)
|
|
Weight
|
Approx
6kg
|
|
AC Input
|
1φ3W (L,
N, PE), 220V±10% 47~63Hz
|
|
Model
(1200W)
|
Rated Output
|
Voltage Ripple
|
Programming Resolution
|
Display Resolution
|
|
V
|
A
|
OVP
|
V
|
A
|
OVP
|
V
|
A
|
|
UPL1200-6①
|
0~6V
|
0~200A
|
0~6.3V
|
≤50mV
|
0.001V
|
0.1A
|
0.001V
|
0.001V
|
0.1A
|
|
UPL1200-12①
|
0~12V
|
0~100A
|
0~12.6V
|
≤50mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL1200-15
|
0~15V
|
0~80A
|
0~15.75V
|
≤50mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL1200-20
|
0~20V
|
0~60A
|
0~21V
|
≤50mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL1200-30
|
0~30V
|
0~40A
|
0~31.5V
|
≤50mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL1200-60
|
0~60V
|
0~20A
|
0~63V
|
≤50mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL1200-1H
|
0~100V
|
0~12A
|
0~105V
|
≤100mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL1200-120
|
0~120V
|
0~10A
|
0~126V
|
≤100mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL1200-150
|
0~150V
|
0~8A
|
0~157.5V
|
≤100mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL1200-2H
|
0~200V
|
0~6A
|
0~210V
|
≤100mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL1200-3H
|
0~300V
|
0~4A
|
0~315V
|
≤100mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL1200-4H
|
0~400V
|
0~3A
|
0~420V
|
≤100mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL1200-5H
|
0~500V
|
0~2.4A
|
0~525V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL1200-6H
|
0~600V
|
0~2A
|
0~630V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
Dimensions
|
Current <100A: 425W×88H×463D
mm (2U)
Current ≥100A:
425W×88H×503D mm (2U-L)
|
|
Weight
|
Approx 11kg
|
|
AC
Input
|
1φ3W (L, N, PE), 220V±10% 47~63Hz
|
Remarks①: Load
Regulation: CV≤0.21%+2LSB
|
Model
(1500W)
|
Rated Output
|
Voltage Ripple
|
Programming Resolution
|
Display Resolution
|
|
V
|
A
|
OVP
|
V
|
A
|
OVP
|
V
|
A
|
|
UPL1500-12①
|
0~12V
|
0~125A
|
0~12.6V
|
≤50mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL1500-15
|
0~15V
|
0~100A
|
0~15.75V
|
≤50mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL1500-20
|
0~20V
|
0~75A
|
0~21V
|
≤50mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL1500-30
|
0~30V
|
0~50A
|
0~31.5V
|
≤50mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL1500-60
|
0~60V
|
0~25A
|
0~63V
|
≤50mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL1500-1H
|
0~100V
|
0~15A
|
0~105V
|
≤100mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL1500-150
|
0~150V
|
0~10A
|
0~157.5V
|
≤100mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL1500-2H
|
0~200V
|
0~7.5A
|
0~210V
|
≤100mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL1500-3H
|
0~300V
|
0~5A
|
0~315V
|
≤100mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL1500-4H
|
0~400V
|
0~3.75A
|
0~420V
|
≤100mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL1500-5H
|
0~500V
|
0~3A
|
0~525V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL1500-6H
|
0~600V
|
0~2.5A
|
0~630V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
Dimensions
|
Current <100A: 425W×88H×463D
mm (2U)
Current ≥100A:
425W×88H×503D mm (2U-L)
|
|
Weight
|
Approx 11.5kg
|
|
AC
Input
|
1φ3W (L, N, PE), 220V±10% 47~63Hz
|
Remarks①: Load
Regulation: CV≤0.21%+2LSB
|
Model
(2400W)
|
Rated Output
|
Voltage Ripple
|
Programming Resolution
|
Display Resolution
|
|
V
|
A
|
OVP
|
V
|
A
|
OVP
|
V
|
A
|
|
UPL2400-12
|
0~12V
|
0~200A
|
0~12.6V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL2400-20
|
0~20V
|
0~120A
|
0~21V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL2400-30
|
0~30V
|
0~80A
|
0~31.5V
|
≤100mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL2400-40
|
0~40V
|
0~60A
|
0~42V
|
≤100mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL2400-60
|
0~60V
|
0~40A
|
0~63V
|
≤100mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL2400-1H
|
0~100V
|
0~24A
|
0~105V
|
≤100mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL2400-120
|
0~120V
|
0~20A
|
0~126V
|
≤100mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL2400-150
|
0~150V
|
0~16A
|
0~157.5V
|
≤100mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL2400-2H
|
0~200V
|
0~12A
|
0~210V
|
≤100mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL2400-3H
|
0~300V
|
0~8A
|
0~315V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL2400-4H
|
0~400V
|
0~6A
|
0~420V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL2400-5H
|
0~500V
|
0~4.8A
|
0~525V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL2400-6H
|
0~600V
|
0~4A
|
0~630V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
Dimensions
|
Current <100A: 425W×88H×463D
mm (2U)
Current ≥100A:
425W×88H×503D mm (2U-L)
|
|
Weight
|
Approx 12~13kg
|
|
AC
Input
|
1φ3W (L, N, PE), 220V±10% 47~63Hz
|
Model
(3000W)
|
Rated Output
|
Voltage Ripple
|
Programming Resolution
|
Display Resolution
|
|
V
|
A
|
OVP
|
V
|
A
|
OVP
|
V
|
A
|
|
UPL3000-15
|
0~15V
|
0~200A
|
0~15.75V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL3000-20
|
0~20V
|
0~150A
|
0~21V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL3000-30
|
0~30V
|
0~100A
|
0~31.5V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL3000-40
|
0~40V
|
0~75A
|
0~42V
|
≤100mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL3000-50
|
0~50V
|
0~60A
|
0~52.5V
|
≤100mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL3000-60
|
0~60V
|
0~50A
|
0~63V
|
≤100mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL3000-1H
|
0~100V
|
0~30A
|
0~105V
|
≤100mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL3000-120
|
0~120V
|
0~25A
|
0~126V
|
≤100mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL3000-150
|
0~150V
|
0~20A
|
0~157.5V
|
≤100mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL3000-2H
|
0~200V
|
0~15A
|
0~210V
|
≤100mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL3000-3H
|
0~300V
|
0~10A
|
0~315V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL3000-4H
|
0~400V
|
0~7.5A
|
0~420V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL3000-5H
|
0~500V
|
0~6A
|
0~525V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL3000-6H
|
0~600V
|
0~5A
|
0~630V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
Dimensions
|
Current
<100A: 425W×88H×463D mm (2U)
Current ≥100A:
425W×88H×503D mm (2U-L)
|
|
Weight
|
Approx 12~14kg
|
|
AC
Input
|
1φ3W (L, N, PE), 220V±10% 47~63Hz
|
Model
(4000W)
|
Rated Output
|
Voltage Ripple
|
Programming Resolution
|
Display Resolution
|
|
V
|
A
|
OVP
|
V
|
A
|
OVP
|
V
|
A
|
|
UPL4000-20
|
0~20V
|
0~200A
|
0~21V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL4000-30
|
0~30V
|
0~133A
|
0~31.5V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL4000-40
|
0~40V
|
0~100A
|
0~42V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL4000-60
|
0~60V
|
0~67A
|
0~63V
|
≤100mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL4000-1H
|
0~100V
|
0~40A
|
0~105V
|
≤100mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL4000-150
|
0~150V
|
0~26.7A
|
0~157.5V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL4000-2H
|
0~200V
|
0~20A
|
0~210V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL4000-3H
|
0~300V
|
0~13.3A
|
0~315V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL4000-4H
|
0~400V
|
0~10A
|
0~420V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL4000-5H
|
0~500V
|
0~8A
|
0~525V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
UPL4000-6H
|
0~600V
|
0~6.7A
|
0~630V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
Dimensions
|
425W×88H×503D
mm (2U-L)
|
|
Weight
|
Approx
16kg
|
|
AC Input
|
3φ4W(L1, L2, L3, PE), 380V±10% 47~63Hz
|
|
Model
(5000W)
|
Rated Output
|
Voltage Ripple
|
Programming Resolution
|
Display Resolution
|
|
V
|
A
|
OVP
|
V
|
A
|
OVP
|
V
|
A
|
|
UPL5000-20
|
0~20V
|
0~250A
|
0~21V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL5000-30
|
0~30V
|
0~167A
|
0~31.5V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL5000-40
|
0~40V
|
0~125A
|
0~42V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL5000-60
|
0~60V
|
0~83A
|
0~63V
|
≤100mV
|
0.01V
|
0.01A
|
0.01V
|
0.01V
|
0.01A
|
|
UPL5000-1H
|
0~100V
|
0~50A
|
0~105V
|
≤100mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL5000-150
|
0~150V
|
0~33.3A
|
0~157.5V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL5000-2H
|
0~200V
|
0~25A
|
0~210V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL5000-3H
|
0~300V
|
0~16.7A
|
0~315V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL5000-4H
|
0~400V
|
0~12.5A
|
0~420V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL5000-5H
|
0~500V
|
0~10A
|
0~525V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL5000-6H
|
0~600V
|
0~8.3A
|
0~630V
|
≤200mV
|
0.1V
|
0.001A
|
0.1V
|
0.1V
|
0.001A
|
|
Dimensions
|
425W×88H×503D
mm (2U-L)
|
|
Weight
|
Approx
16kg
|
|
AC Input
|
3φ4W(L1, L2, L3, PE), 380V±10% 47~63Hz
|
Model
(6000W)
|
Rated Output
|
Voltage Ripple
|
Programming Resolution
|
Display Resolution
|
|
V
|
A
|
OVP
|
V
|
A
|
OVP
|
V
|
A
|
|
UPL6000-20
|
0~20V
|
0~300A
|
0~21V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL6000-30
|
0~30V
|
0~200A
|
0~31.5V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL6000-40
|
0~40V
|
0~150A
|
0~42V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL6000-60
|
0~60V
|
0~100A
|
0~63V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL6000-1H
|
0~100V
|
0~60A
|
0~105V
|
≤100mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL6000-120
|
0~120V
|
0~50A
|
0~126V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL6000-150
|
0~150V
|
0~40A
|
0~157.5V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL6000-2H
|
0~200V
|
0~30A
|
0~210V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL6000-3H
|
0~300V
|
0~20A
|
0~315V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL6000-4H
|
0~400V
|
0~15A
|
0~420V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL6000-5H
|
0~500V
|
0~12A
|
0~525V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL6000-6H
|
0~600V
|
0~10A
|
0~630V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL6000-2H
|
0~200V
|
0~30A
|
0~210V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL6000-3H
|
0~300V
|
0~20A
|
0~315V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL6000-4H
|
0~400V
|
0~15A
|
0~420V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL6000-5H
|
0~500V
|
0~12A
|
0~525V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL6000-6H
|
0~600V
|
0~10A
|
0~630V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
Dimensions
|
482.6Wx132.5Hx533D
mm (3U)
|
|
Weight
|
Approx
20~21kg
|
|
AC Input
|
3φ4W(L1, L2, L3, PE), 380V±10% 47~63Hz
|
|
Model
(8000W)
|
Rated Output
|
Voltage Ripple
|
Programming Resolution
|
Display Resolution
|
|
V
|
A
|
OVP
|
V
|
A
|
OVP
|
V
|
A
|
|
UPL8000-40
|
0~40V
|
0~200A
|
0~42V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL8000-50
|
0~50V
|
0~160A
|
0~55V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL8000-60
|
0~60V
|
0~133A
|
0~63V
|
≤100mV
|
0.01V
|
0.1A
|
0.01V
|
0.01V
|
0.1A
|
|
UPL8000-1H
|
0~100V
|
0~80A
|
0~105V
|
≤100mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
0.01A
|
|
UPL8000-150
|
0~150V
|
0~53A
|
0~157.5V
|
≤200mV
|
0.1V
|
0.01A
|
0.1V
|
0.1V
|
LOGIN
주문내역
CART(0)
자료실
고객센터
