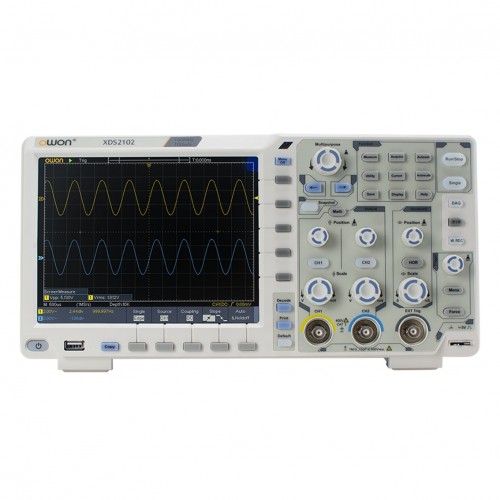

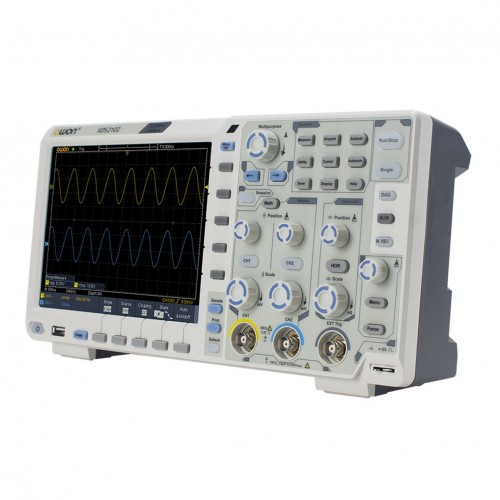

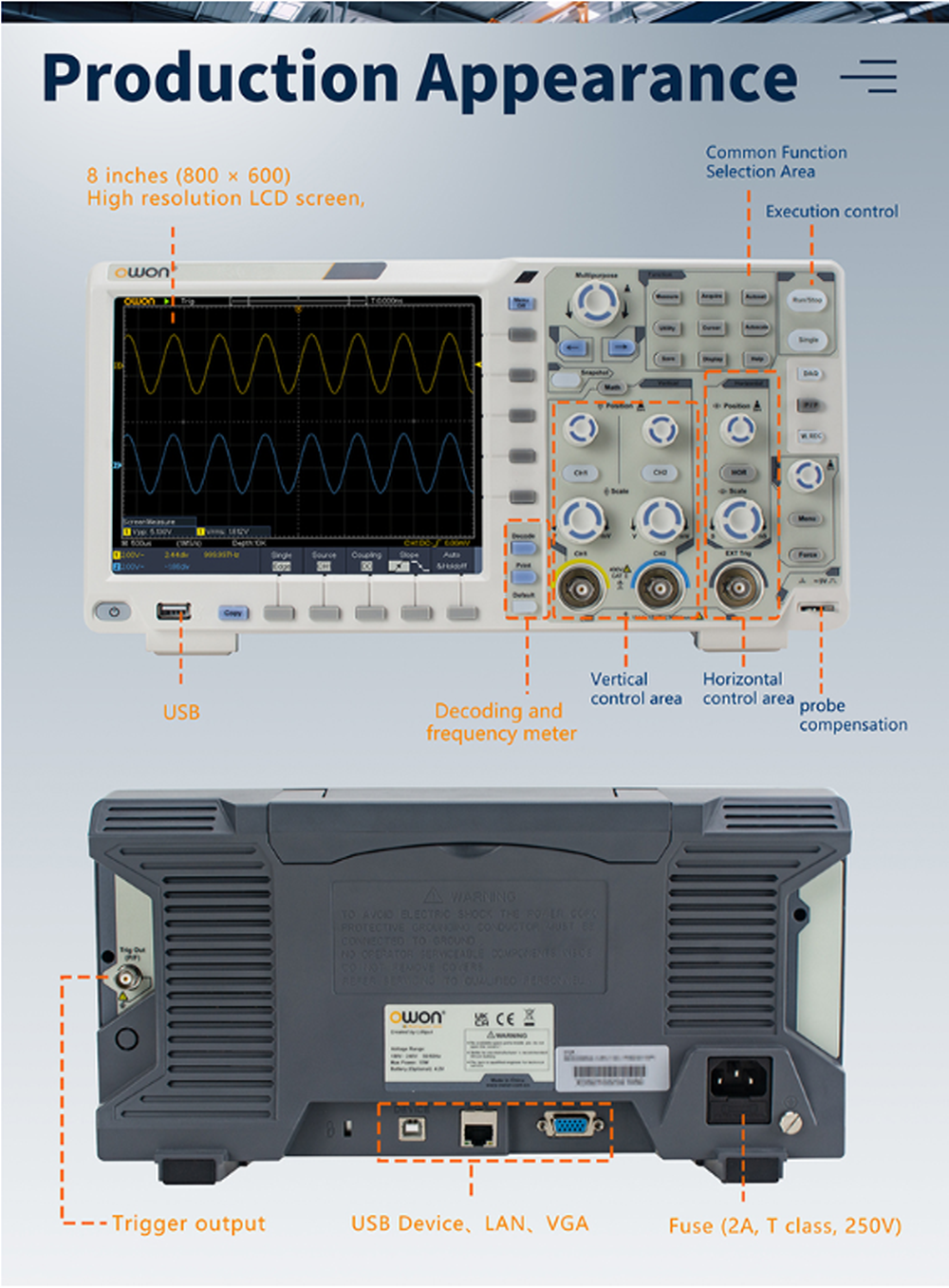

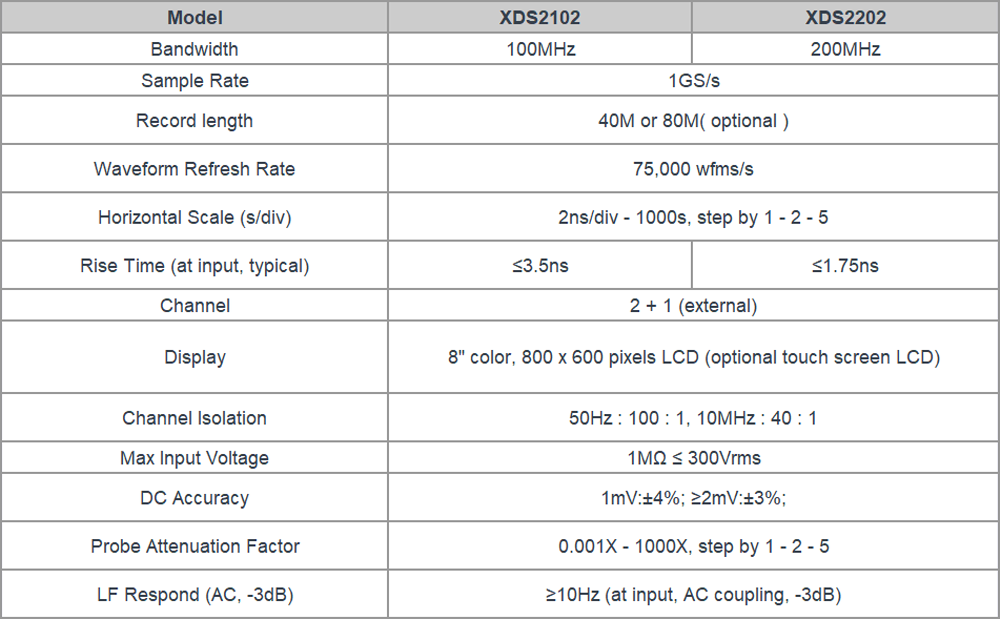

Bandwidth

100MHz

200MHz

Sample Rate

1GS/s

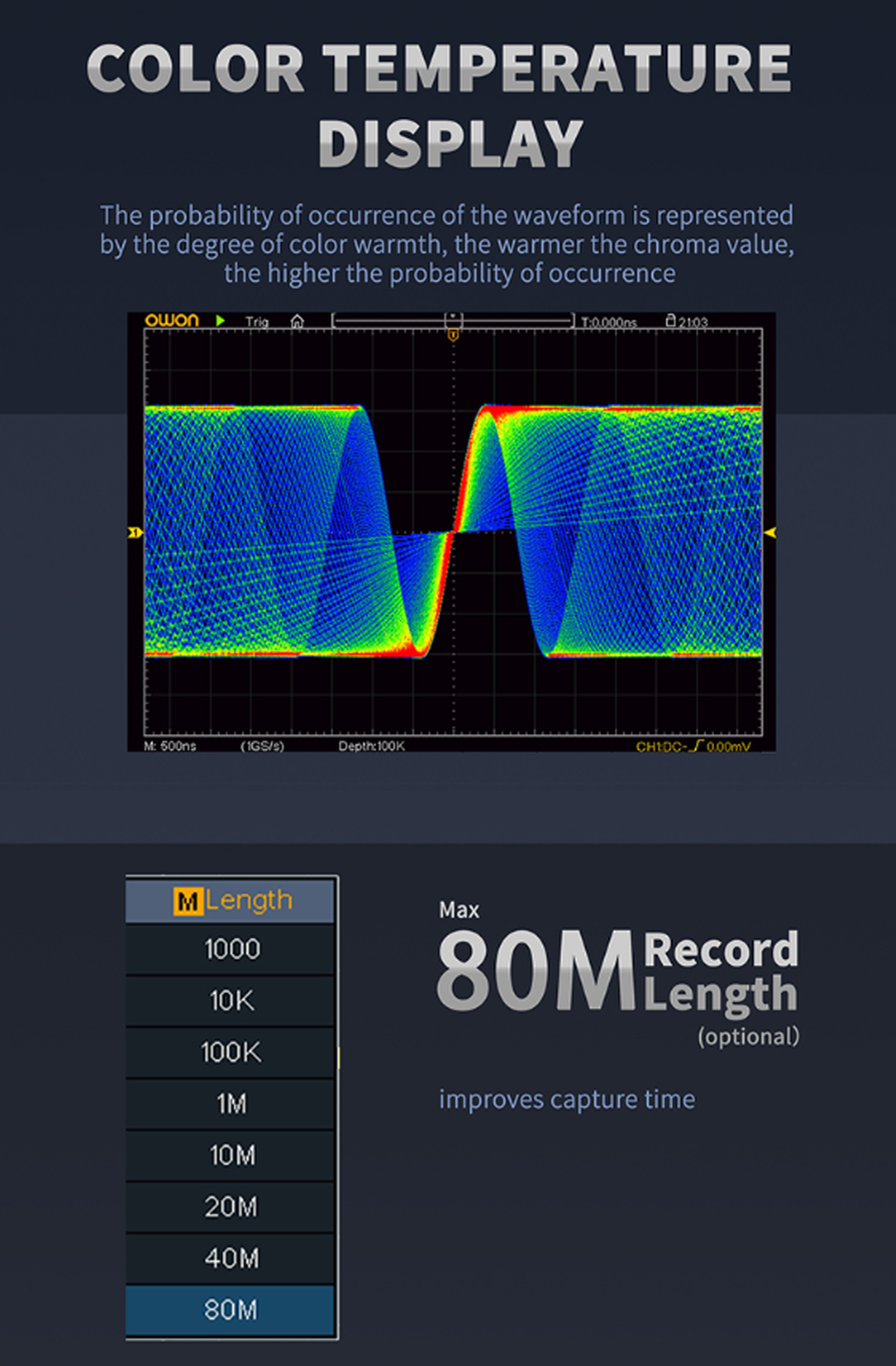

Record length

40M or 80M( optional )

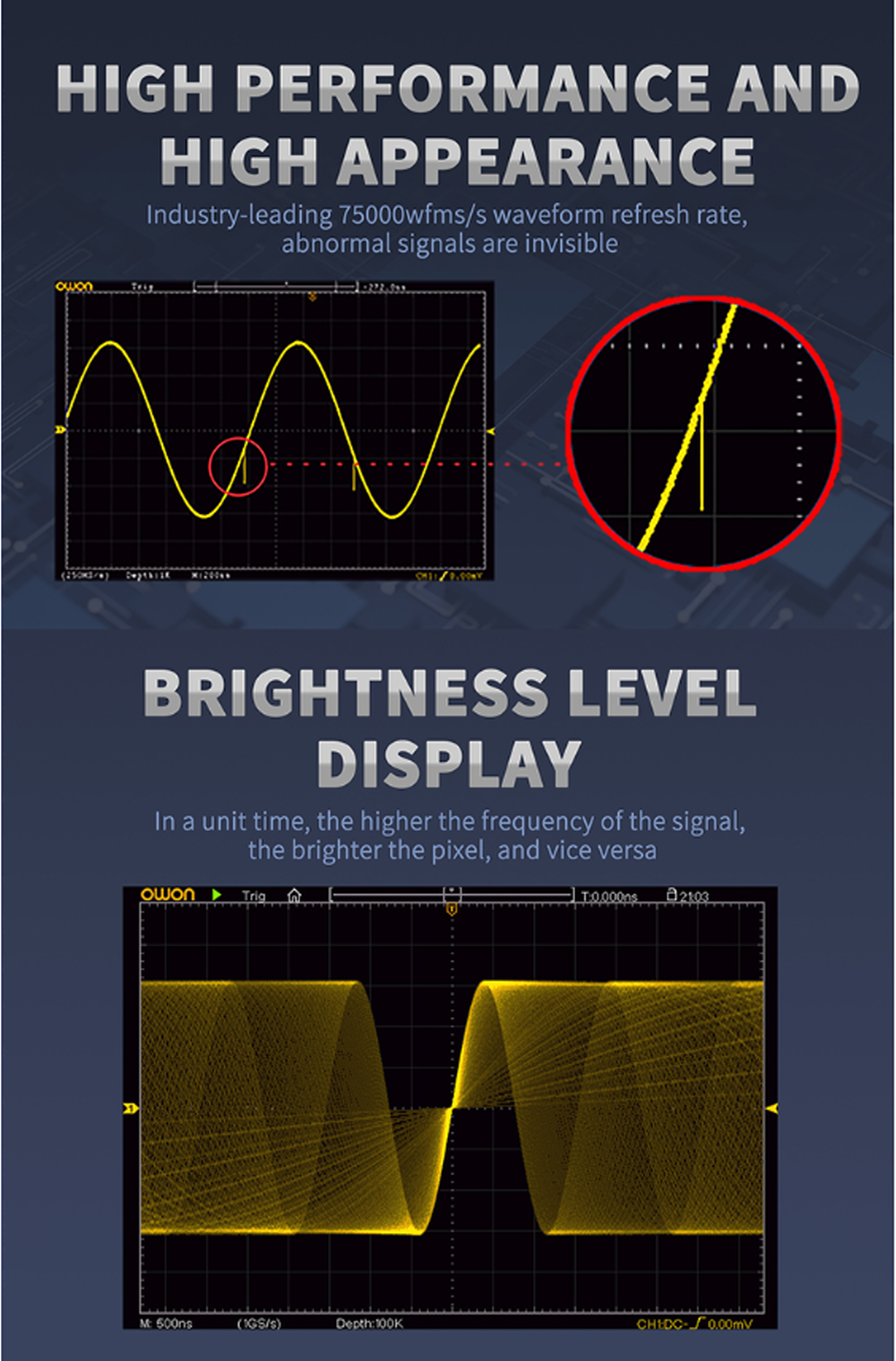

Waveform Refresh Rate

75,000 wfms/s

Horizontal Scale (s/div)

2ns/div - 1000s, step by 1 - 2 - 5

Rise Time (at input, typical)

≤3.5ns

≤1.75ns

Channel

2 + 1 (external)

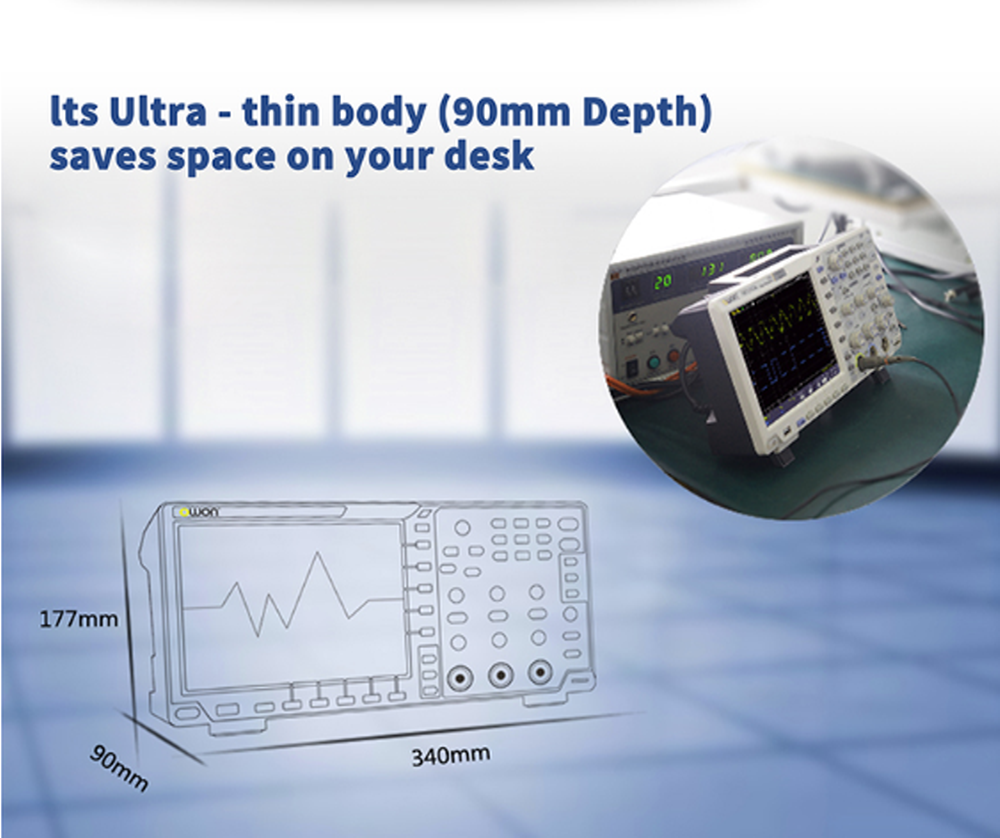

Display

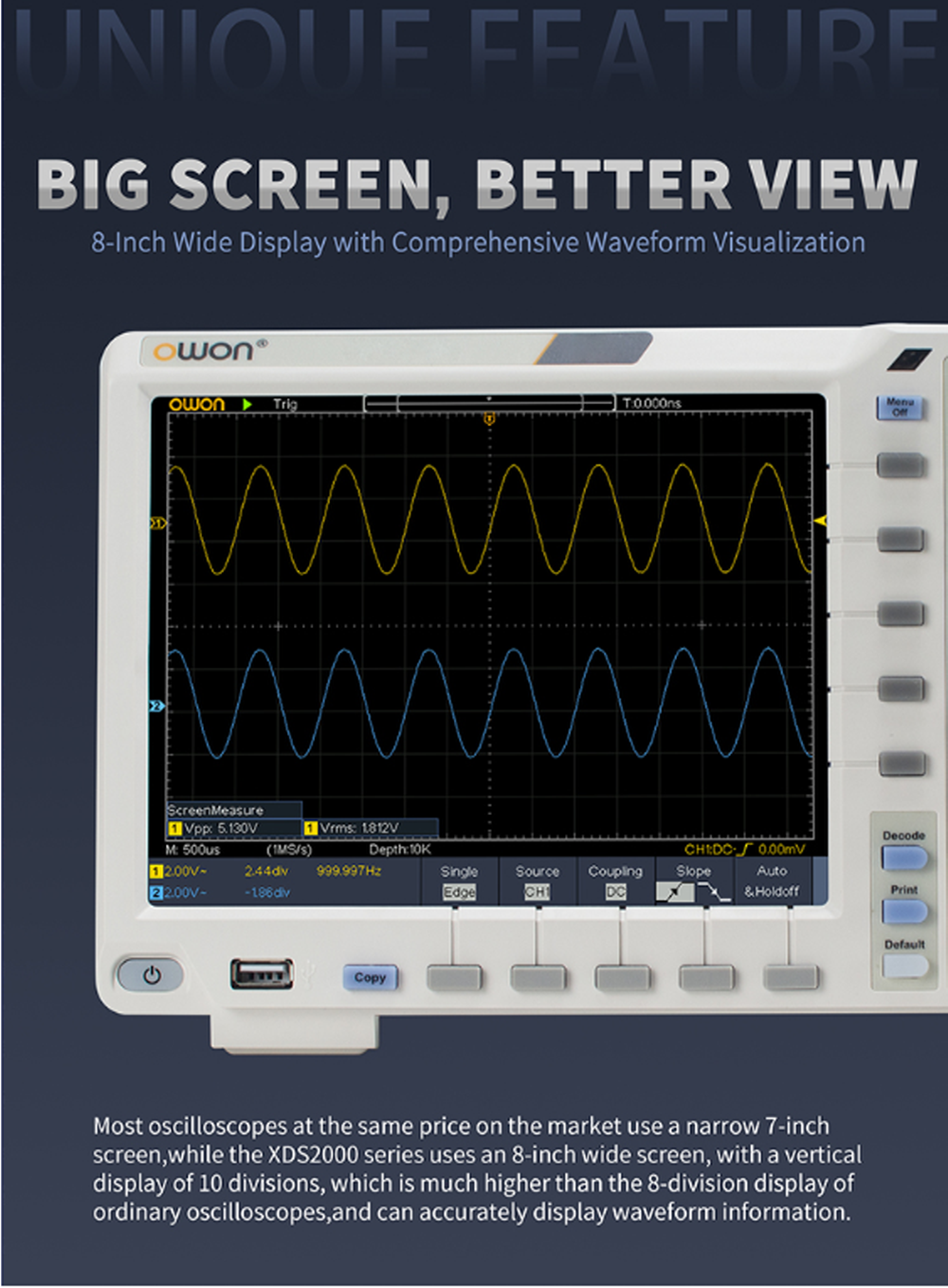

8" color, 800 x 600 pixels LCD (optional touch screen LCD)

Channel Isolation

50Hz : 100 : 1, 10MHz : 40 : 1

Max Input Voltage

1MΩ ≤ 300Vrms

DC Accuracy

1mV:±4%; ≥2mV:±3%;

Probe Attenuation Factor

0.001X - 1000X, step by 1 - 2 - 5

LF Respond (AC, -3dB)

≥10Hz (at input, AC coupling, -3dB)

Interpolation

sin(x) / x

Input Coupling

DC, AC, and GND

Vertical Sensitivity

1mV/div - 10V/div (at input)

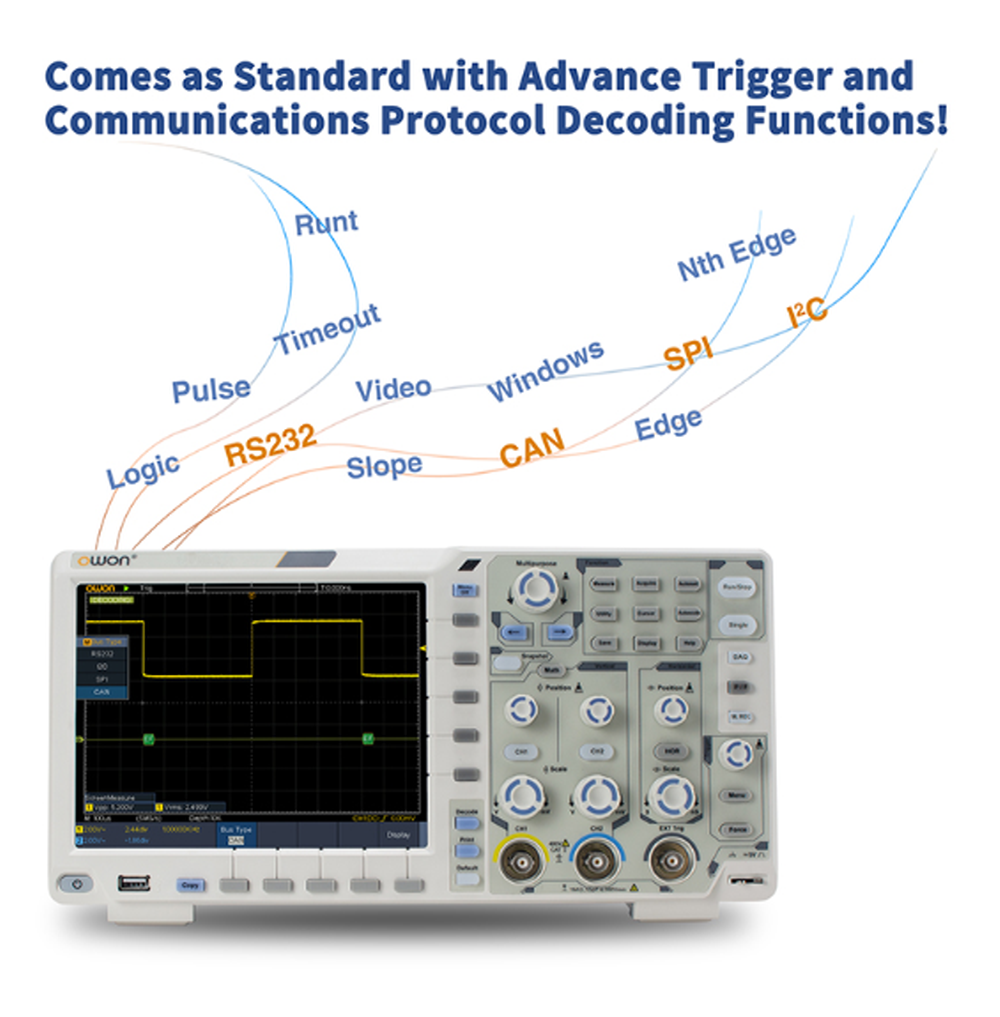

Trigger Type

Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I²C, SPI, RS232,and CAN

Bus Decoding

I²C, SPI, RS232, and CAN

Trigger Mode

Auto, Normal, and Single

Vertical Range

±2V(1 mV/div - 100mV/div); ±200V (200 mV/div -10 V/div)

Line / Field Frequency (video)

NTSC, PAL and SECAM standard

Cursor Measurement

△V, and △T between cursors, △V and △T between cursors, and auto- cursors

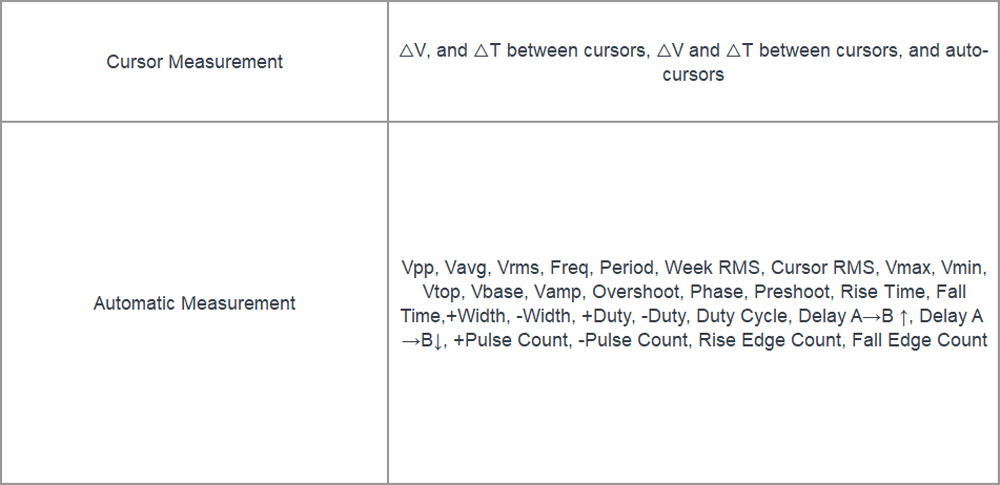

Automatic Measurement

Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time,

+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count

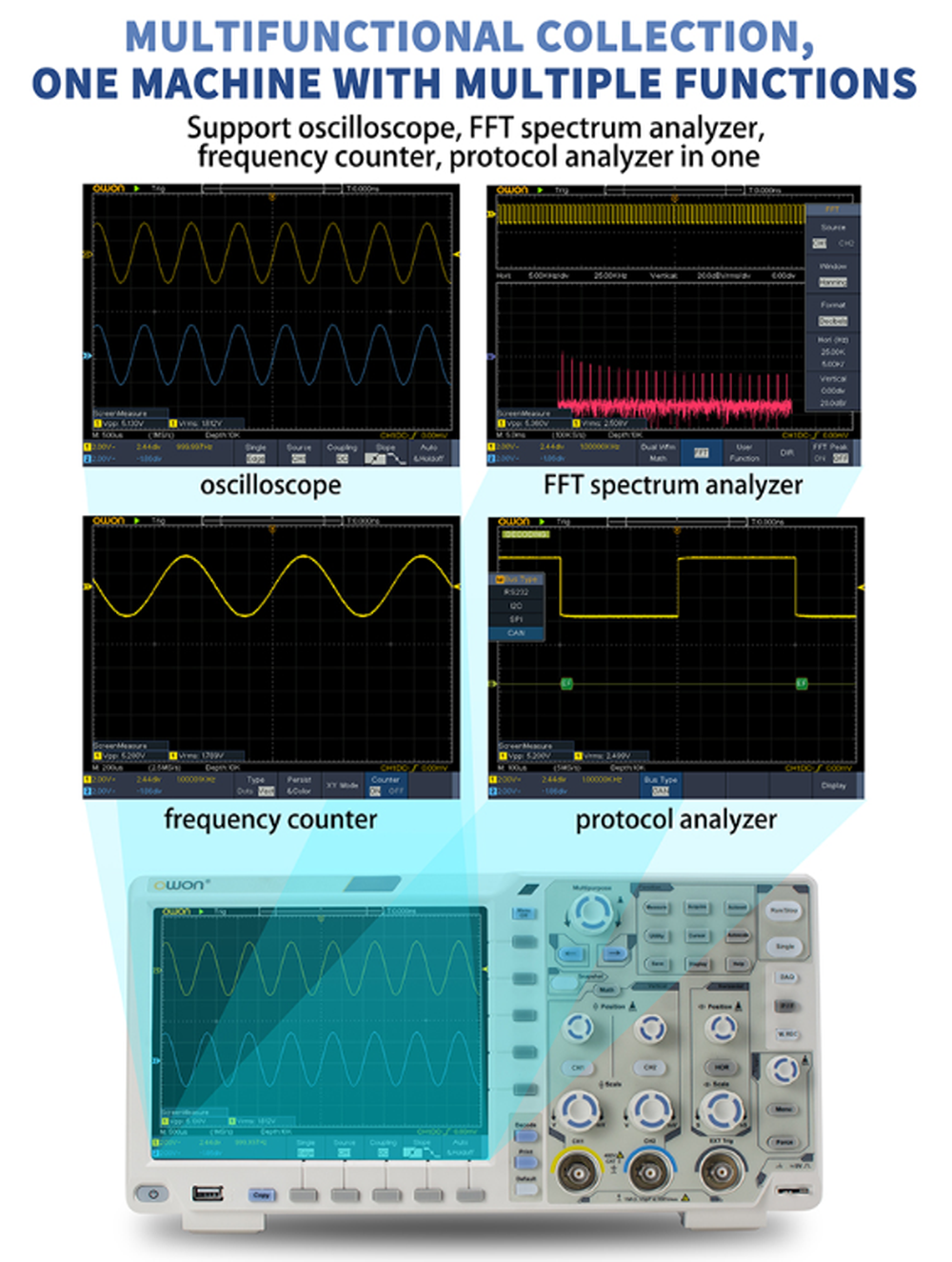

Waveform Math

＋, －, ×, ÷, FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter

(low pass, high pass, band pass, band reject)

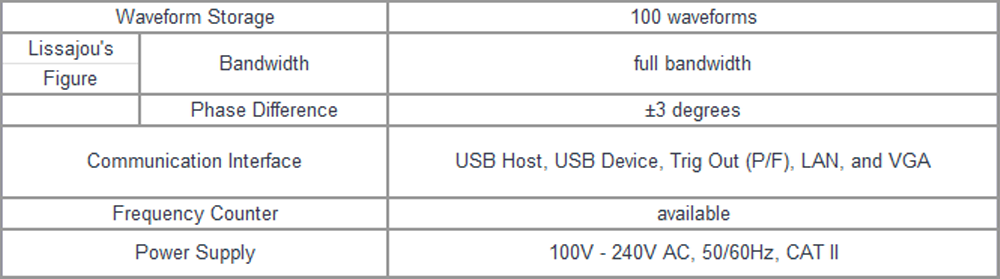

Waveform Storage

100 waveforms

Lissajou's
Figure

Bandwidth

full bandwidth

Phase Difference

±3 degrees

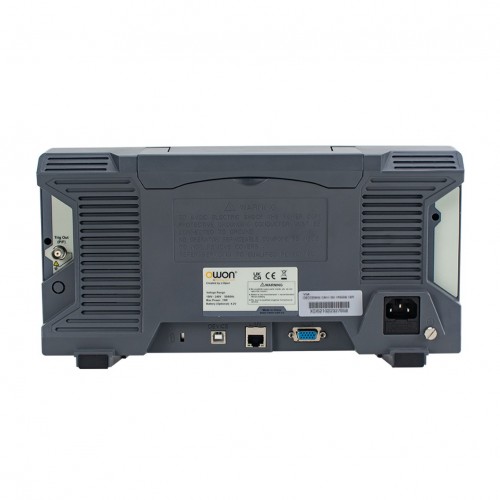

Communication Interface

USB Host, USB Device, Trig Out (P/F), LAN, and VGA

Frequency Counter

available

Power Supply

100V - 240V AC, 50/60Hz, CAT II
