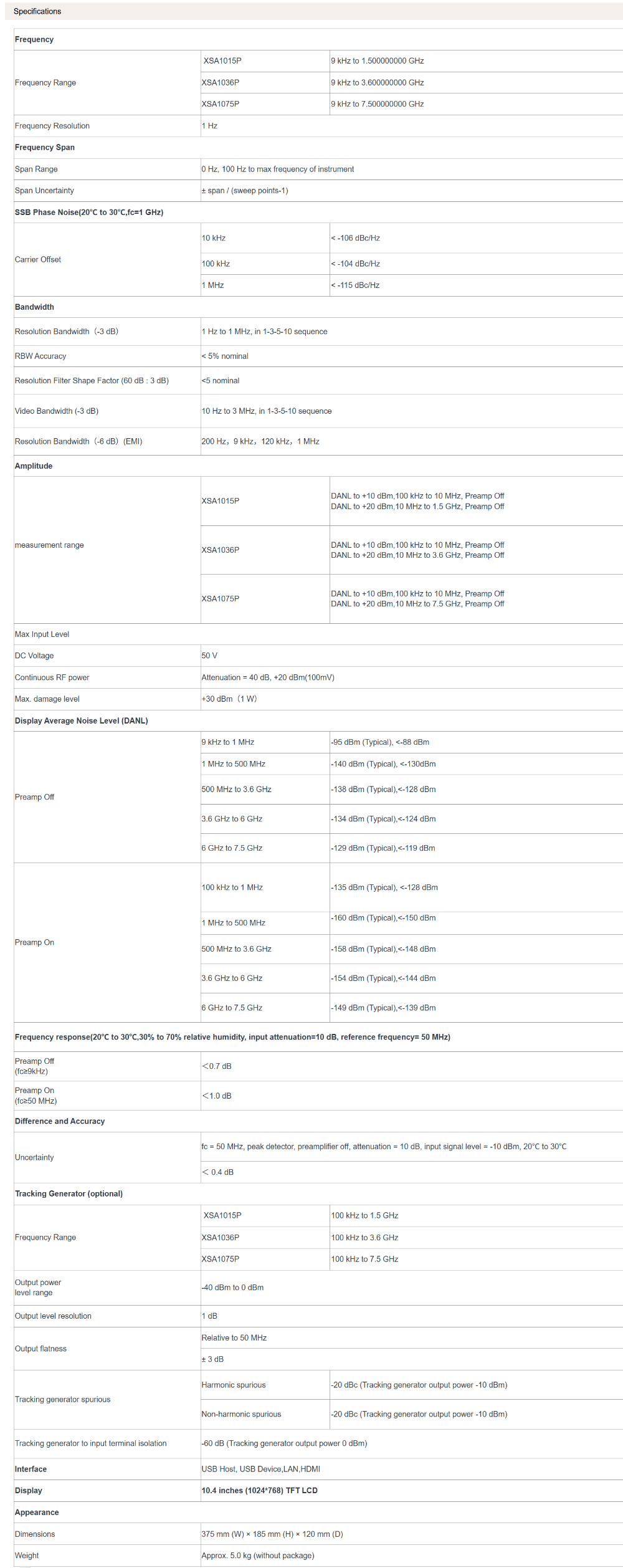

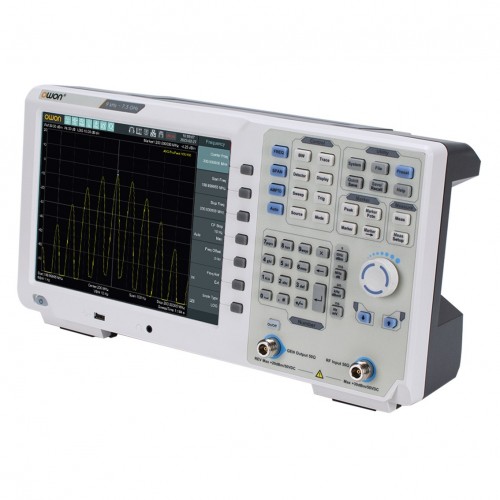

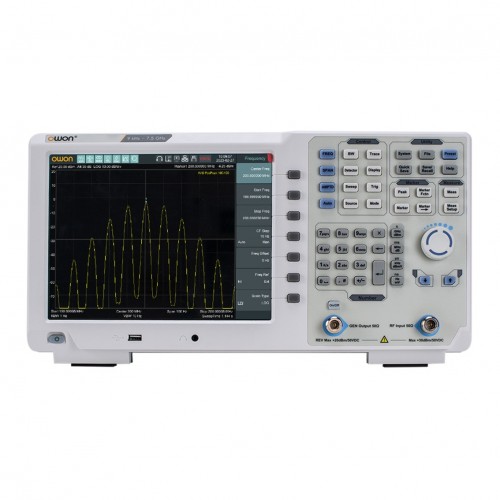

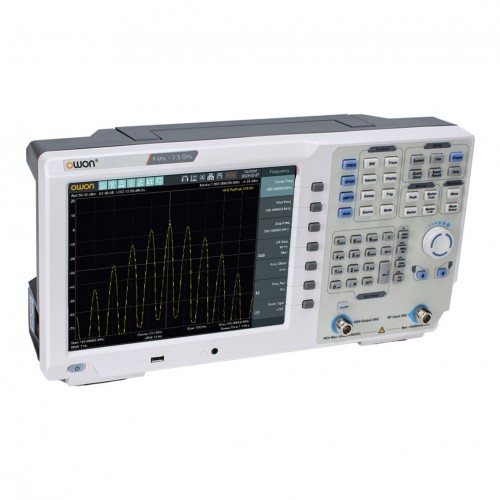

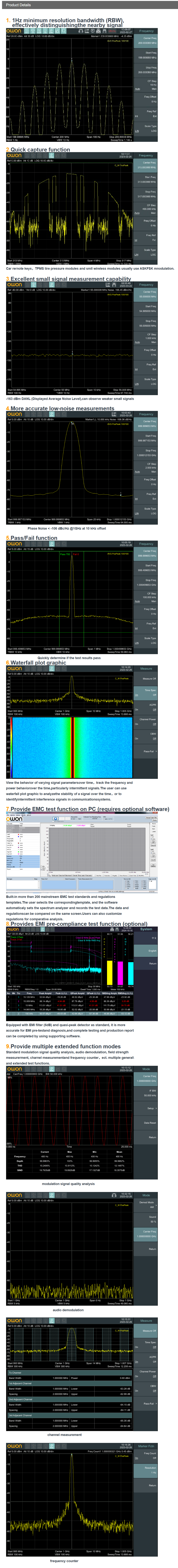

Frequency

Frequency Range

 XSA1015P

9 kHz to 1.500000000 GHz

XSA1036P

9 kHz to 3.600000000 GHz

XSA1075P

9 kHz to 7.500000000 GHz

Frequency Resolution

1 Hz

Frequency Span

Span Range

0 Hz, 100 Hz to max frequency of instrument

Span Uncertainty

± span / (sweep points-1)

SSB Phase Noise(20℃ to 30℃,fc=1 GHz)

Carrier Offset

10 kHz

< -106 dBc/Hz

100 kHz

< -104 dBc/Hz

1 MHz

< -115 dBc/Hz

Bandwidth

Resolution Bandwidth（-3 dB）

1 Hz to 1 MHz, in 1-3-5-10 sequence

RBW Accuracy

< 5% nominal

Resolution Filter Shape Factor (60 dB : 3 dB)

<5 nominal

Video Bandwidth (-3 dB)

10 Hz to 3 MHz, in 1-3-5-10 sequence

Resolution Bandwidth（-6 dB）(EMI)

200 Hz，9 kHz，120 kHz，1 MHz

Amplitude

measurement range

XSA1015P

DANL to +10 dBm,100 kHz to 10 MHz, Preamp Off

DANL to +20 dBm,10 MHz to 1.5 GHz, Preamp Off

XSA1036P

DANL to +10 dBm,100 kHz to 10 MHz, Preamp Off

DANL to +20 dBm,10 MHz to 3.6 GHz, Preamp Off

XSA1075P

DANL to +10 dBm,100 kHz to 10 MHz, Preamp Off

DANL to +20 dBm,10 MHz to 7.5 GHz, Preamp Off

Max Input Level

DC Voltage

50 V

Continuous RF power

Attenuation = 40 dB, +20 dBm(100mV)

Max. damage level

+30 dBm（1 W）

Display Average Noise Level (DANL)

Preamp Off

9 kHz to 1 MHz

-95 dBm (Typical), <-88 dBm

1 MHz to 500 MHz

-140 dBm (Typical), <-130dBm

500 MHz to 3.6 GHz

-138 dBm (Typical),<-128 dBm

3.6 GHz to 6 GHz

-134 dBm (Typical),<-124 dBm

6 GHz to 7.5 GHz

-129 dBm (Typical),<-119 dBm

Preamp On

100 kHz to 1 MHz

-135 dBm (Typical), <-128 dBm

1 MHz to 500 MHz

-160 dBm (Typical),<-150 dBm

500 MHz to 3.6 GHz

-158 dBm (Typical),<-148 dBm

3.6 GHz to 6 GHz

-154 dBm (Typical),<-144 dBm

6 GHz to 7.5 GHz

-149 dBm (Typical),<-139 dBm

Frequency response(20℃ to 30℃,30% to 70% relative humidity, input attenuation=10 dB, reference frequency= 50 MHz)

Preamp Off
(fc≥9kHz)

＜0.7 dB

Preamp On
(fc≥50 MHz)

＜1.0 dB

Difference and Accuracy

Uncertainty

fc = 50 MHz, peak detector, preamplifier off, attenuation = 10 dB, input signal level = -10 dBm, 20℃ to 30℃

＜ 0.4 dB

Tracking Generator (optional)

Frequency Range

 XSA1015P

100 kHz to 1.5 GHz

XSA1036P

100 kHz to 3.6 GHz

XSA1075P

100 kHz to 7.5 GHz

Output power

level range

-40 dBm to 0 dBm

Output level resolution

1 dB

Output flatness

Relative to 50 MHz

± 3 dB

Tracking generator spurious

Harmonic spurious

-20 dBc (Tracking generator output power -10 dBm)

Non-harmonic spurious

-20 dBc (Tracking generator output power -10 dBm)

Tracking generator to input terminal isolation

-60 dB (Tracking generator output power 0 dBm)

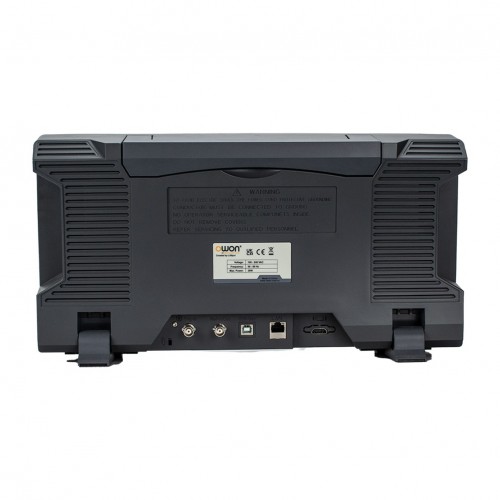

Interface

USB Host, USB Device,LAN,HDMI

Display

10.4 inches (1024*768) TFT LCD

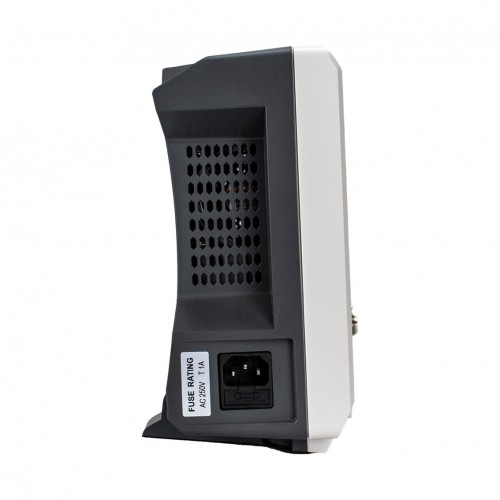

Appearance

Dimensions

375 mm (W) × 185 mm (H) × 120 mm (D)

Weight

Approx. 5.0 kg (without package)
