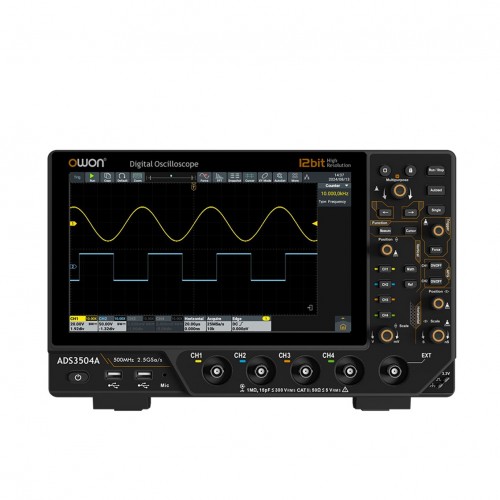

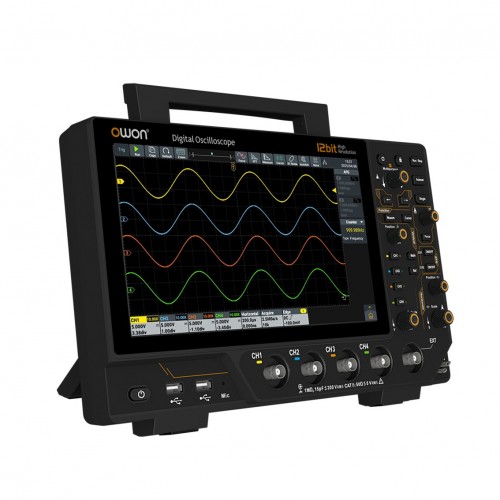

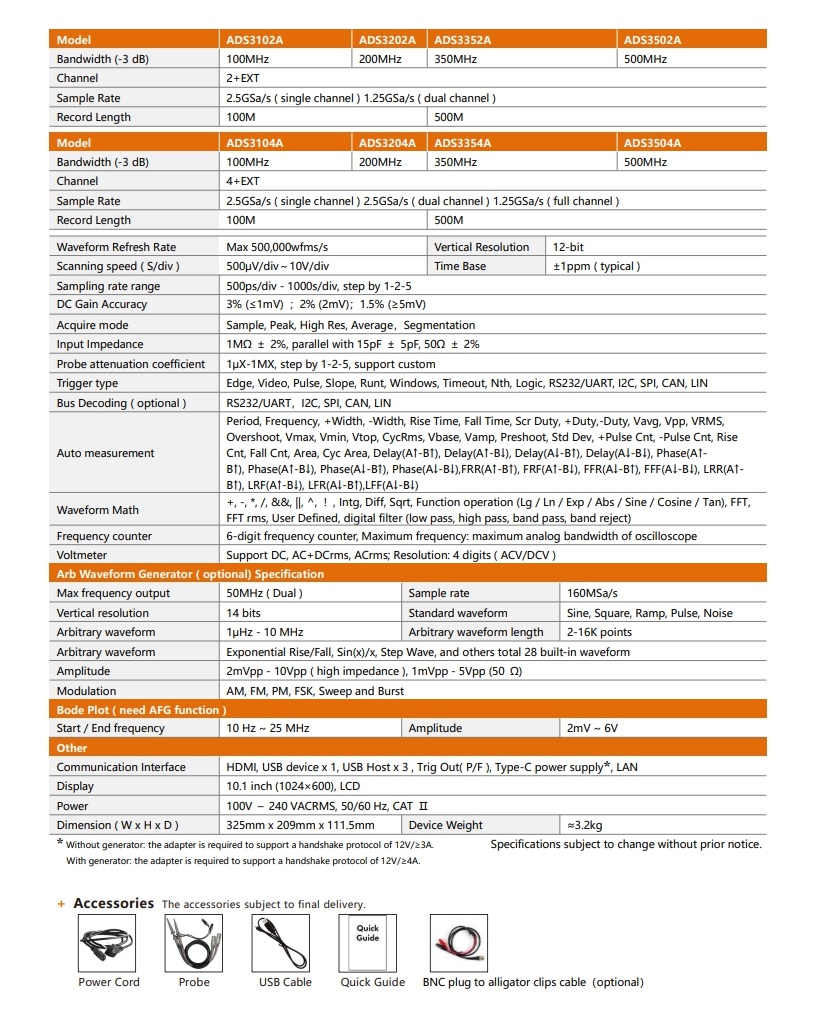

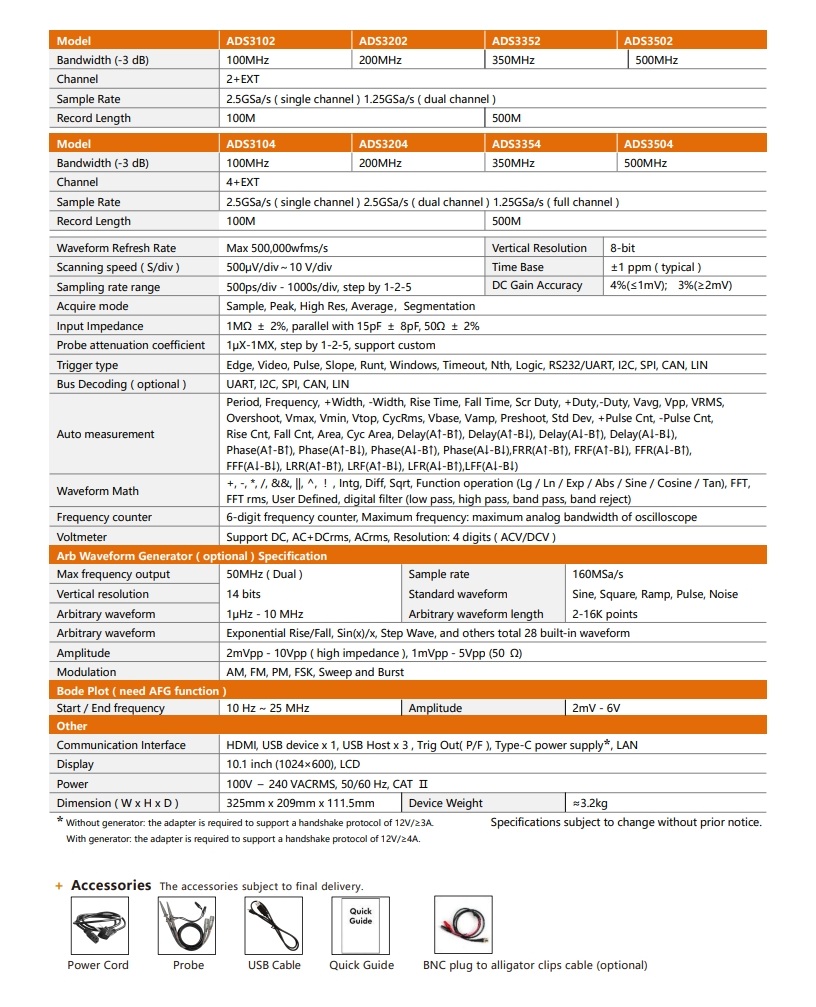

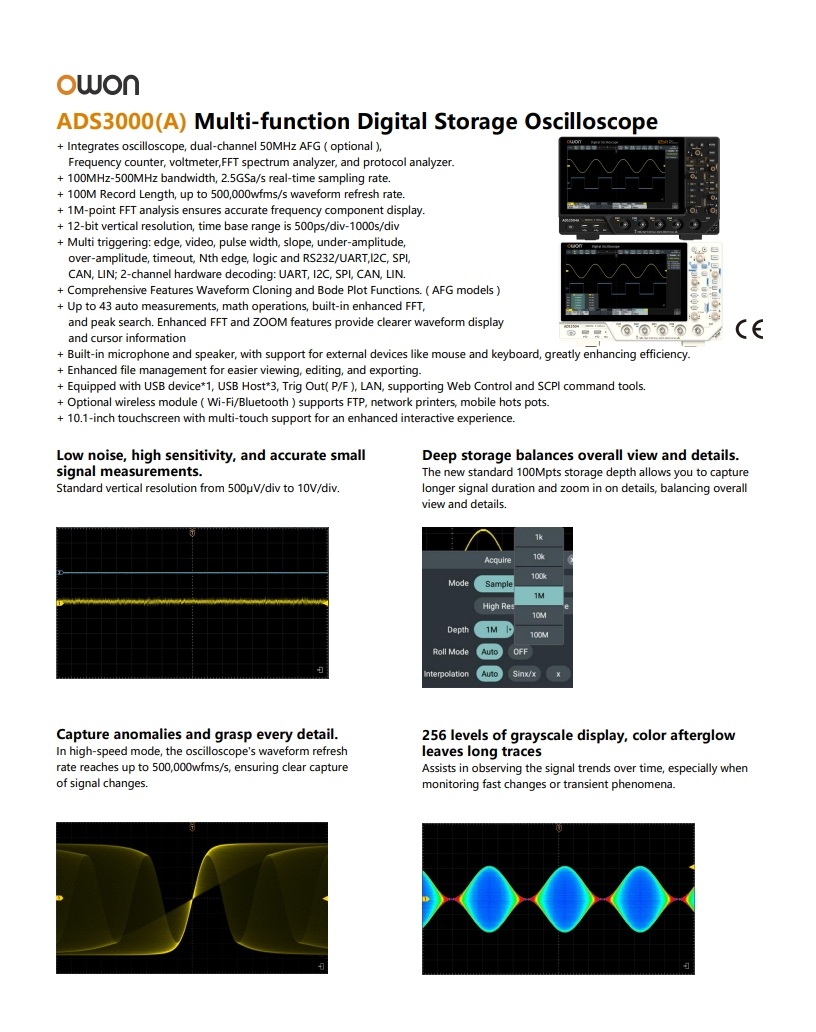

Model

ADS3102A

ADS3202A

ADS3352A

ADS3502A

Bandwidth (-3 dB)

100MHz

200MHz

350MHz

500MHz

Channel

2+EXT

Sample Rate

2.5 GSa/s (single channel) 1.25 GSa/s (dual channel)

Model

ADS3104A

ADS3204A

ADS3354A

ADS3504A

Bandwidth (-3 dB)

100MHz

200MHz

350MHz

500MHz

Channel

4 + EXT

Sample Rate

2.5 GSa/s (single channel) 2.5 GSa/s (dual channel) 1.25 GSa/s (full channel)

Acquire mode

Sample, Peak, High Res, Average, Segmentation

Record Length

100M

Waveform Refresh Rate

Max 500,000 wfms/s

Vertical Resolution

12bits

Scanning speed (S/div)

500μV/div - 10 V/div

Relay time accuracy

±1 ppm (typical)

DC Gain Accuracy

3%(≤1mV), 2%(2 mV), 1.5%(≥5 mV)

Input Impedance

1 MΩ ± 2%, parallel with 15pF ± 5pF, 50Ω ± 2%

Probe attenuation

coefficient

1μX-1MX, step by 1-2-5, support custom

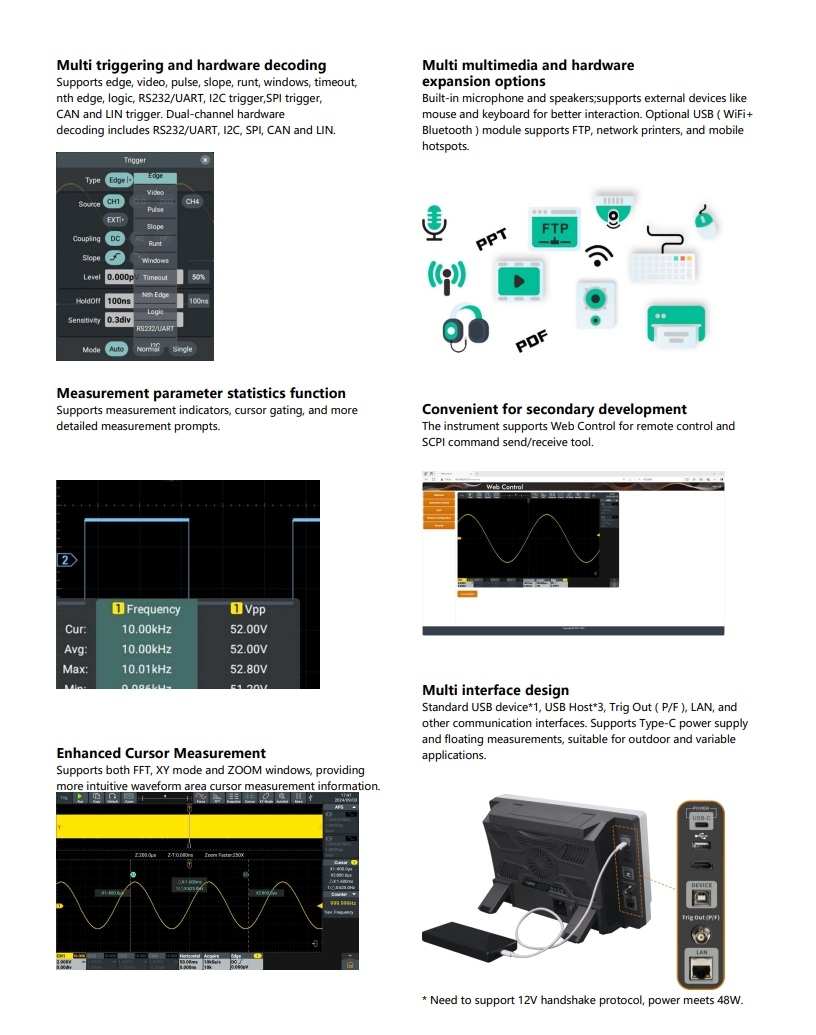

Trigger type

Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic, RS232/UART, I2C, SPI CAN, LIN

Bus Decoding

RS232 / UART, I2C, SPI, CAN, LIN

Auto measurement

Period, Frequency, +Width, -Width, Rise Time, Fall Time, Scr Duty, +Duty,-Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, +Pulse Cnt, -Pulse Cnt, Rise Cnt, Fall Cnt, Area, Cyc Area, Delay(A↑-B↑),

Delay(A↑-B↓), Delay(A↓-B↑), Delay(A↓-B↓), Phase(A↑-B↑), Phase(A↑-B↓),

Phase(A↓-B↑), Phase(A↓-B↓),FRR(A↑-B↑), FRF(A↑-B↓), FFR(A↓-B↑), FFF(A↓-B↓),

LRR(A↑-B↑), LRF(A↑-B↓), LFR(A↓-B↑),LFF(A↓-B↓)

Waveform Math

+, -, *, /, &&, ||, ^, ！, Intg, Diff, Sqrt, Function operation (Lg / Ln / Exp / Abs / Sine / Cosine / Tan), FFT, FFT rms, User Defined,

digital filter (low pass, high pass, band pass, band reject)

Frequency counter

6-digit frequency counter；

Maximum frequency: maximum analog bandwidth of oscilloscope

Voltmeter

Support DC, AC+DCrms, ACrms；Resolution: 4 digits (ACV/DCV)

Arb Waveform Generator (optioanl) Specification

Max frequency output

50MHz Dual

Sample rate

160 MSa/s

Vertical resolution

14 bits

Standard waveform

Sine, Square, Ramp, Pulse, Noise

Arbitrary waveform frequency

1 μHz - 10 MHz

Arbitrary waveform length

2-16K points

Arbitrary waveform

Exponential Rise/Fall, Sin(x)/x, Step Wave, and others total 28 built-in waveforms

Amplitude

2mVpp - 10Vpp (high impedance), 1mVpp - 5Vpp (50 Ω)

Modulation

AM, FM, PM, FSK, Sweep and Burst

Bode Plot (need AFG function)

Start / End frequency

10 Hz ~ 25 MHz

Amplitude

2mV ~ 6V

Other

Communication Interface

HDMI, USB device x1, USB Host x3, Trig Out (P/F), Type-C power supply*, LAN

Display

10.1 inch (1024×600), LCD

Power

100V – 240 VACRMS, 50/60 Hz, CAT Ⅱ

Dimension (WxHxD)

325mm x 209mm x 111.5mm

Weight (without package)

≈3.2kg
