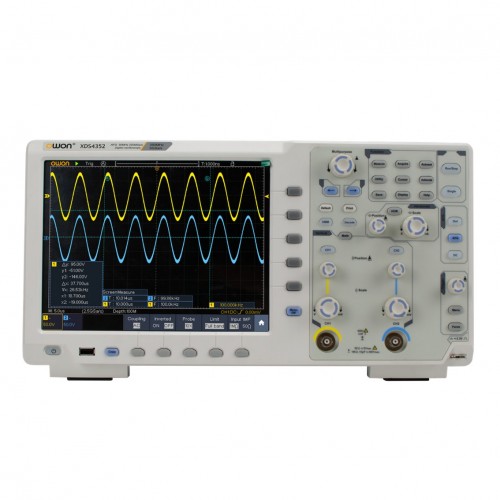

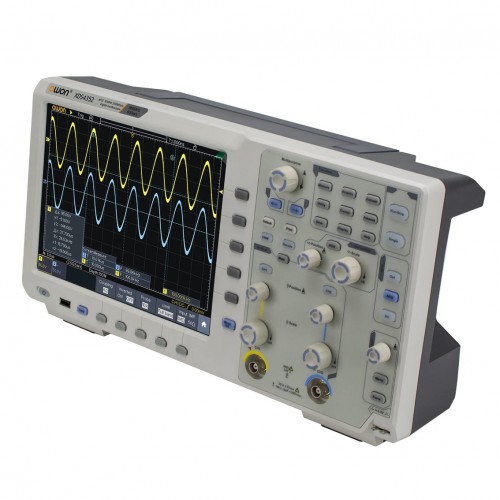

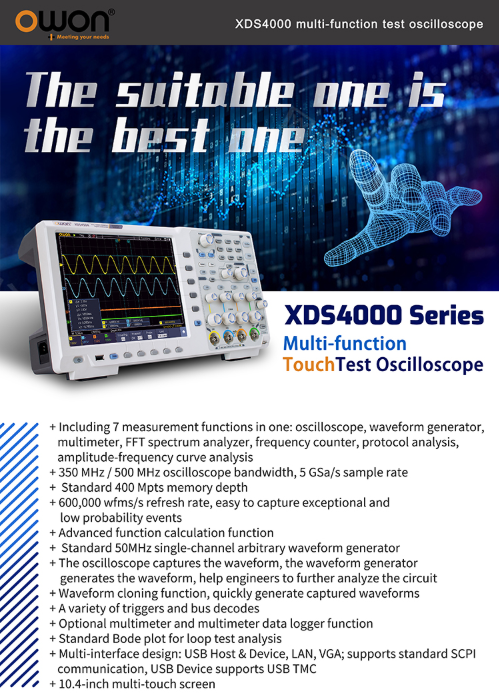

Model

XDS4352

XDS4502

XDS4354

XDS4504

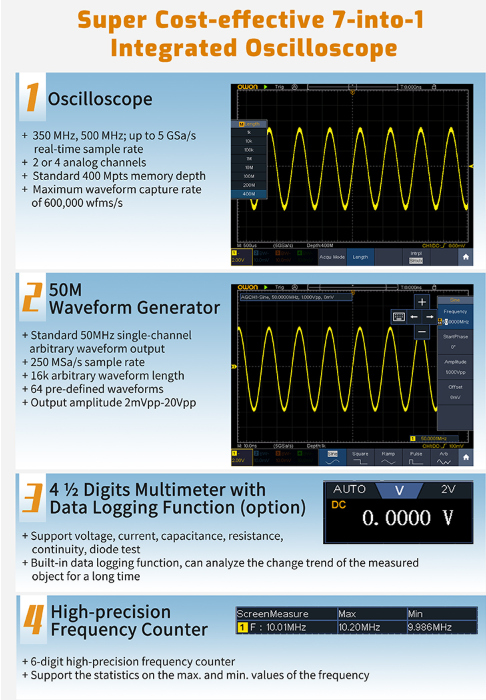

Bandwidth

350MHz

500MHz

350MHz

500MHz

 Sample Rate

5GS/s

 Horizontal Scale (s/div)

500ps/div - 1000s/div, step by 1 - 2 - 5

 Channel

2

4

 Display

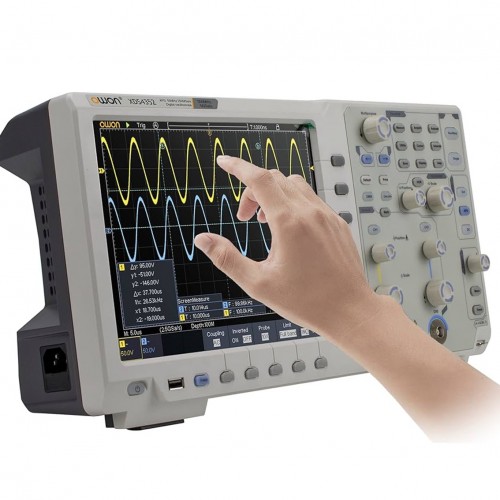

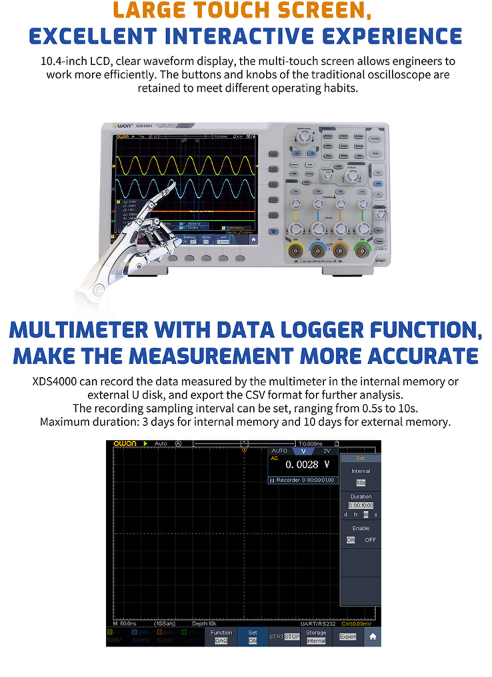

10.4 inch LCD touch screen

Record length

400M

Waveform Refresh Rate

600，000 wfms/s

Vertical Sensitivit

1MΩ :1mV/div~ 10V/div；50Ω : 1mV/div ~ 1V/div

Vertical Resolution (A/D)

8bits

Input impedance

1MΩ±2%，in parallel with 15pF±5pF；50Ω ± 2%

Input coupling

DC, AC, Ground

Trigger type

Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, CAN

Decoding Type (optional)

RS232, I2C, SPI, CAN

Automatic measurement

Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +Pulse Width, -Pulse Width, +Duty Cycle, -Duty Cycle, Delay A→B, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, FRR、FRF、FFR、FFF、LRR、LRF、LFR、LFF、Phase A→B, Phase A→B, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, and Cycle Area.

Waveform math

＋, －, *, / ,FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function,
digital filter (low pass, high pass, band pass, band reject)

Waveform storage

100 waveforms

Communication interface

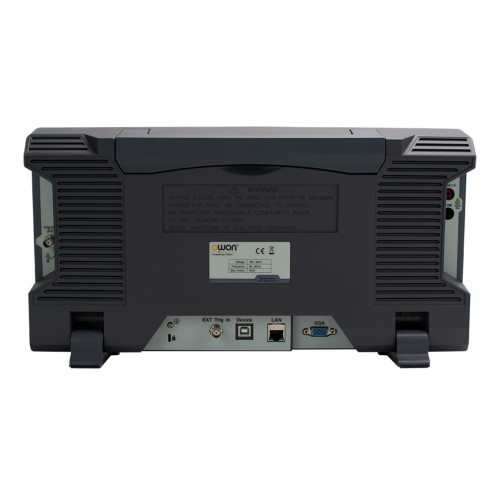

USB Host, USB Device; Trig Out(Pass/Fail); LAN port; VGA port; EXT Trig In

Printer compatibility

PictBridge

Dimension

422 mm (W)×226 mm (H)×135 mm (D)

Weight

Approx. 5 kg (without accessories)

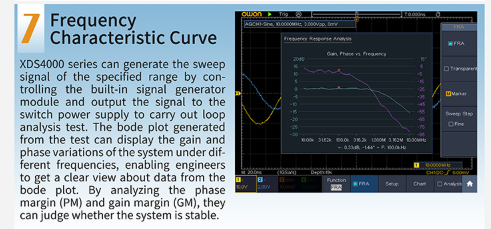

Max Frequency Output

50MHz

Sample Rate

250MS/s

Channel

1 channel

Vertical Resolution

14bits

Amplitude Range

2mVpp - 5Vpp（≦50MHz）; 2mVpp - 20Vpp（≦25MHz）

Waveform Length

16K

Output Waveforms

Sine, Square, Pulse, Ramp, Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, Noise,and others, total 64 built-in waveforms, and user-defined arbitrary waveform

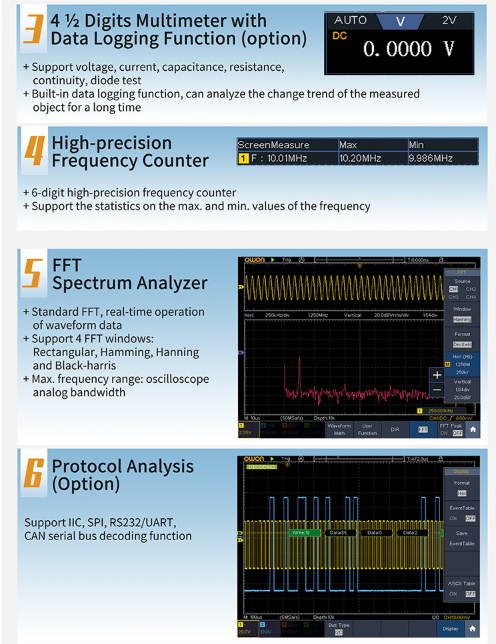

Full Scale Reading

4½ digits

Auto Range

√

Measure

Voltage, Current, Capacitance, Resistance, Frequency, Duty cycle, Continuity, Diode test
