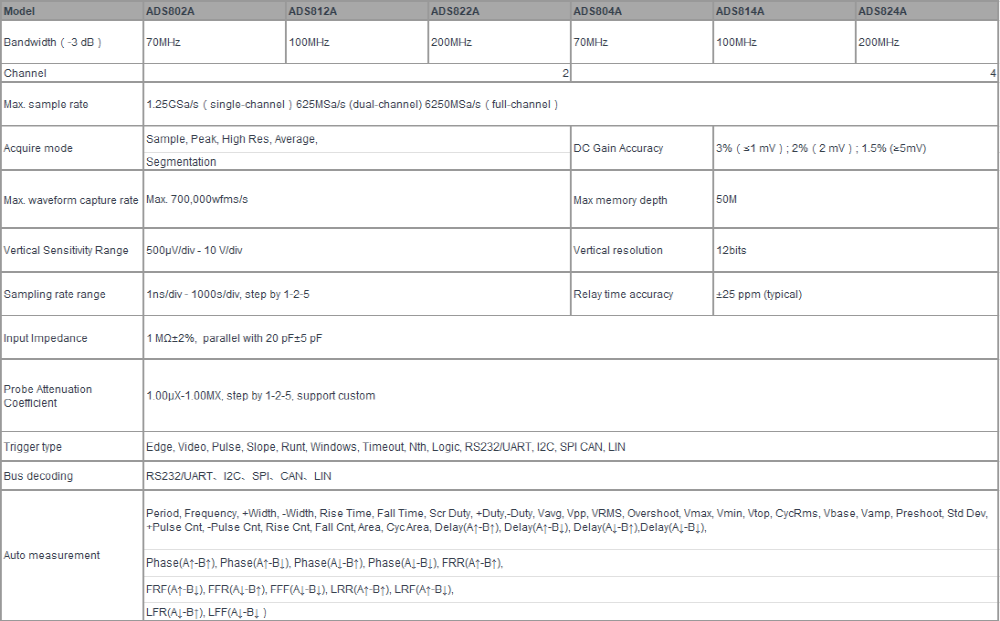

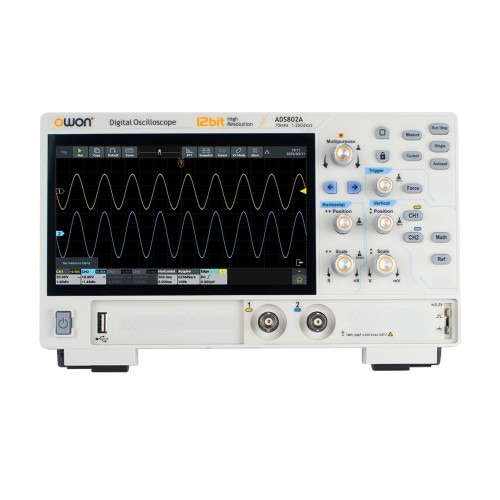

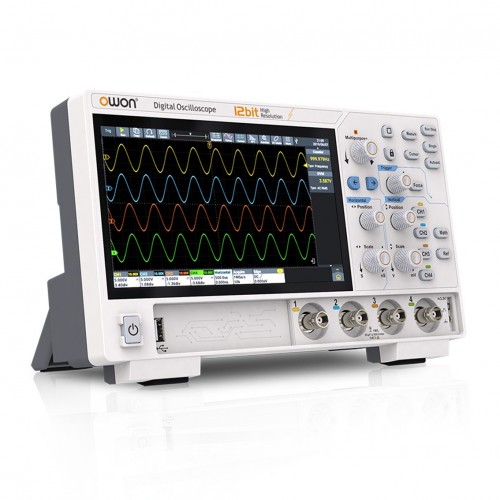

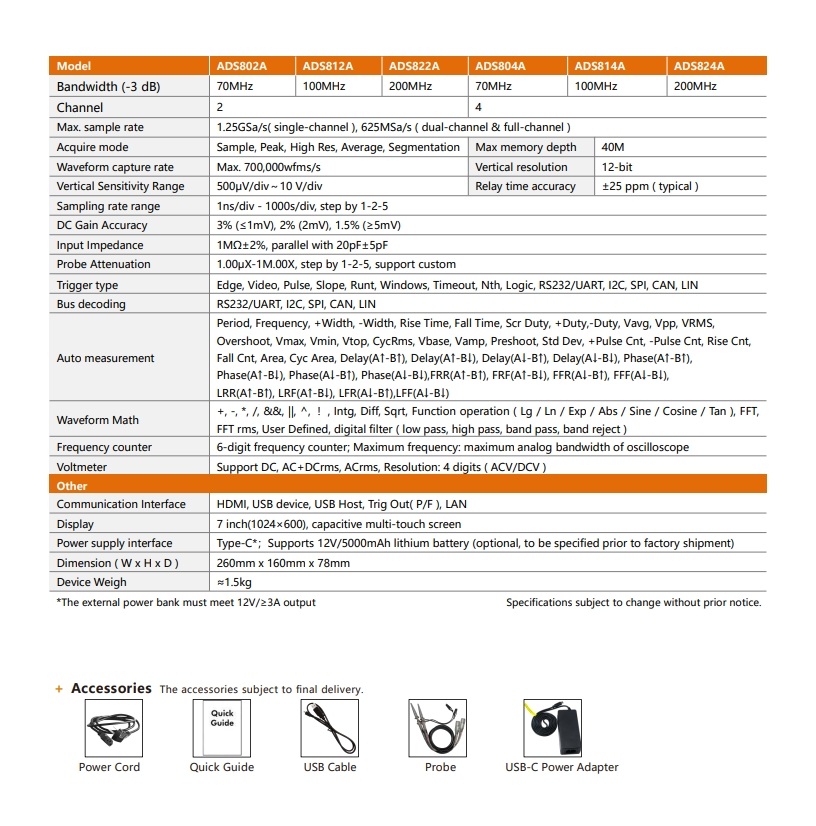

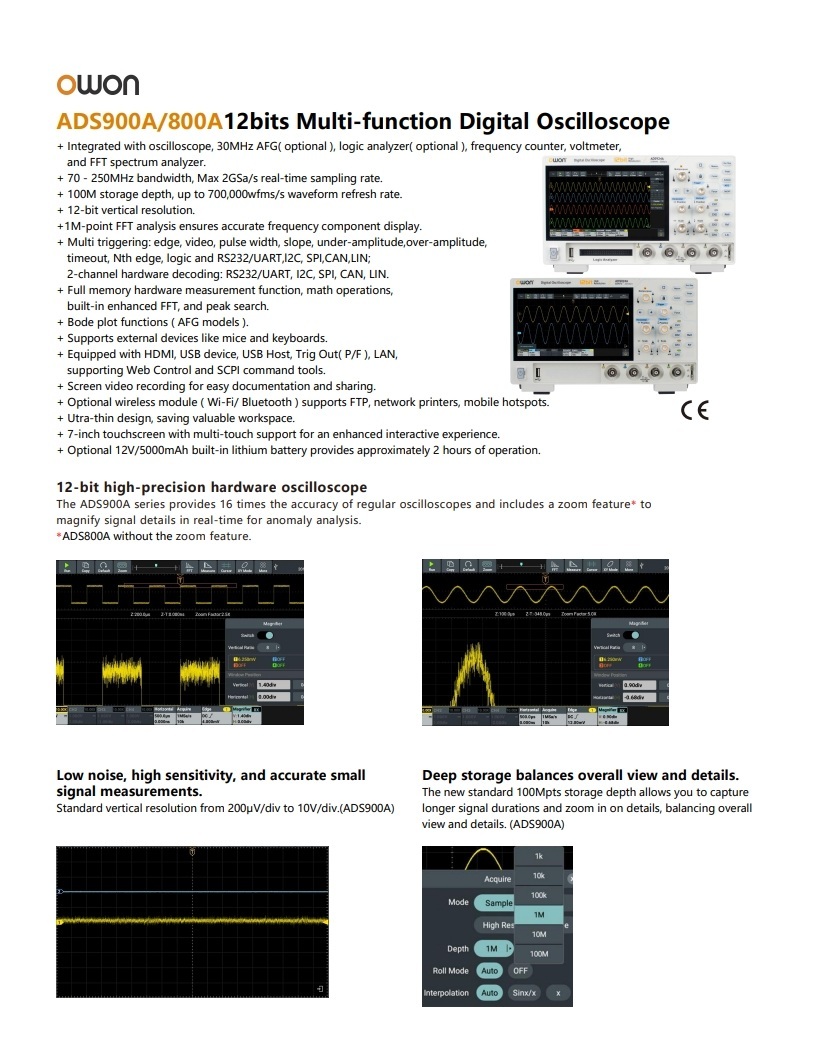

Model

ADS802A

ADS812A

ADS822A

ADS804A

ADS814A

ADS824A

Bandwidth（-3 dB）

70MHz

100MHz

200MHz

70MHz

100MHz

200MHz

Channel

2

4

Max. sample rate

1.25GSa/s（single-channel）625MSa/s (dual-channel) 6250MSa/s（full-channel）

Acquire mode

Sample, Peak, High Res, Average,

Segmentation

DC Gain Accuracy

3%（≤1 mV）; 2%（2 mV）; 1.5% (≥5mV)

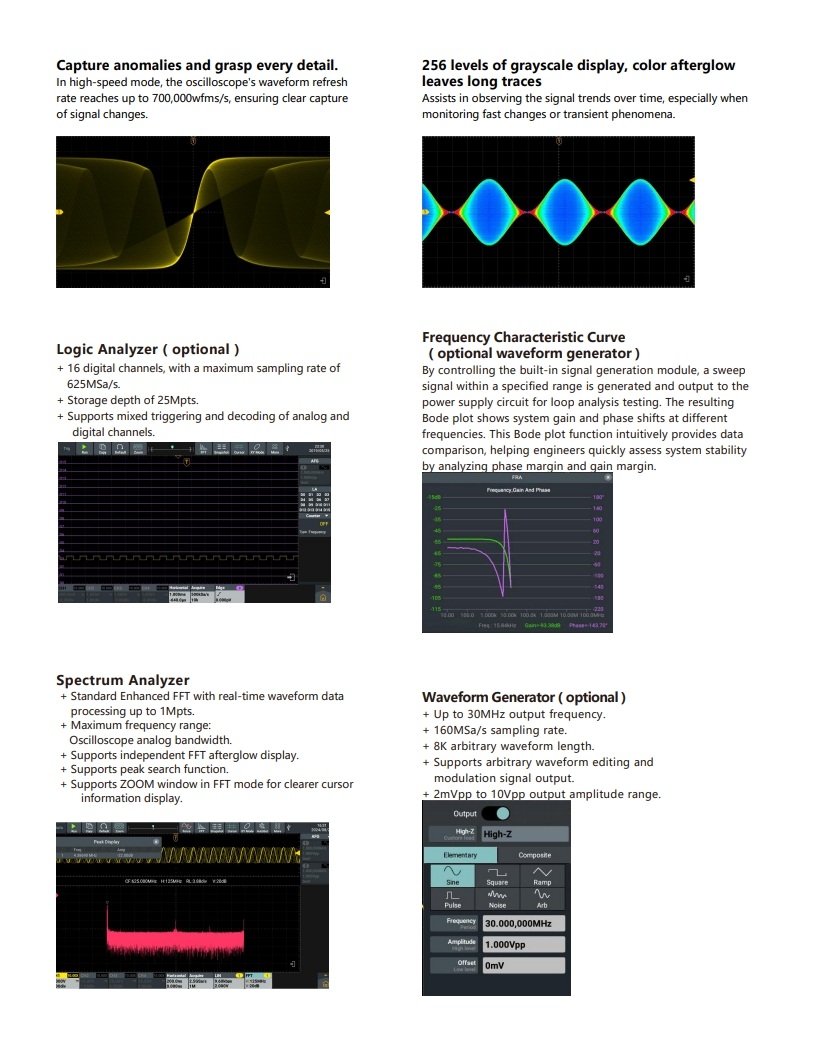

Max. waveform capture rate

Max. 700,000wfms/s

Max memory depth

50M

Vertical Sensitivity Range

500μV/div - 10 V/div

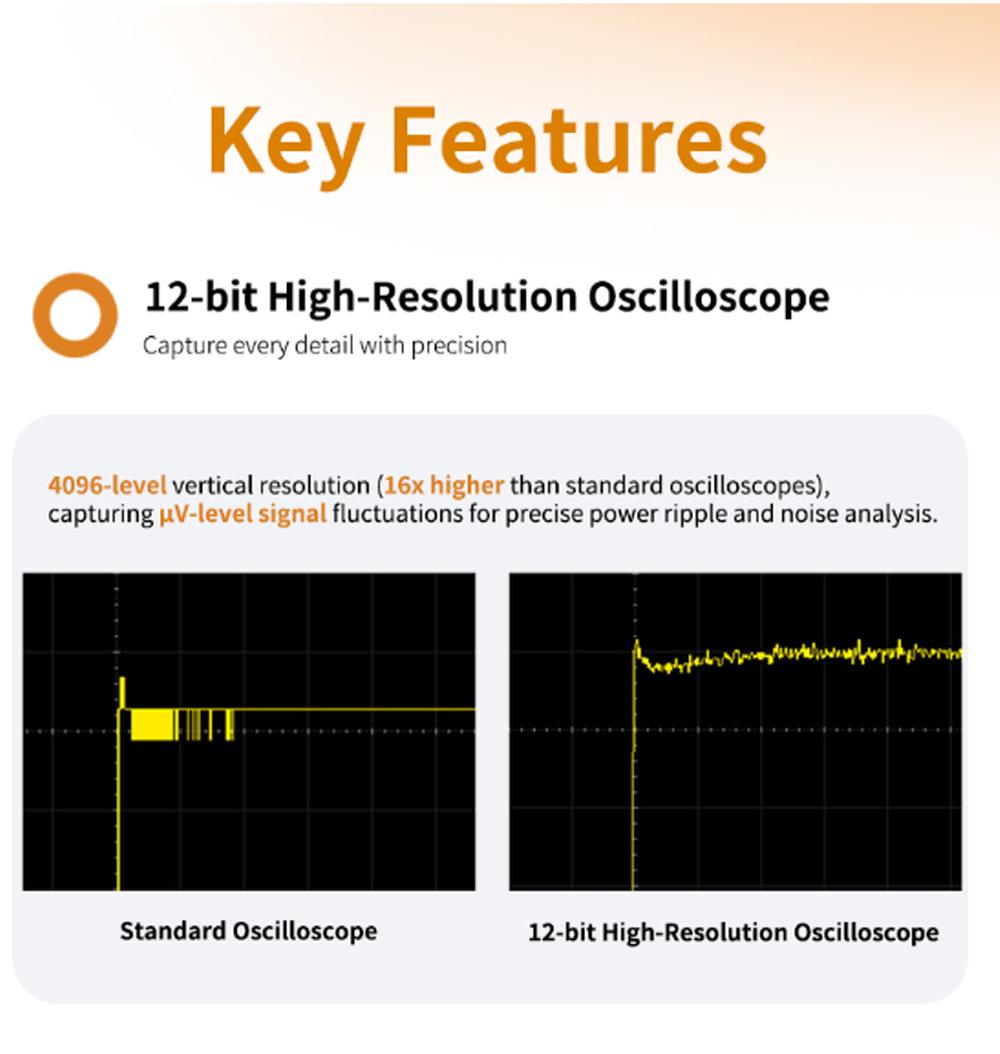

Vertical resolution

12bits

Sampling rate range

1ns/div - 1000s/div, step by 1-2-5

Relay time accuracy

±25 ppm (typical)

Input Impedance

1 MΩ±2%,  parallel with 20 pF±5 pF

Probe Attenuation Coefficient

1.00μX-1.00MX, step by 1-2-5, support custom

Trigger type

Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic, RS232/UART, I2C, SPI CAN, LIN

Bus decoding

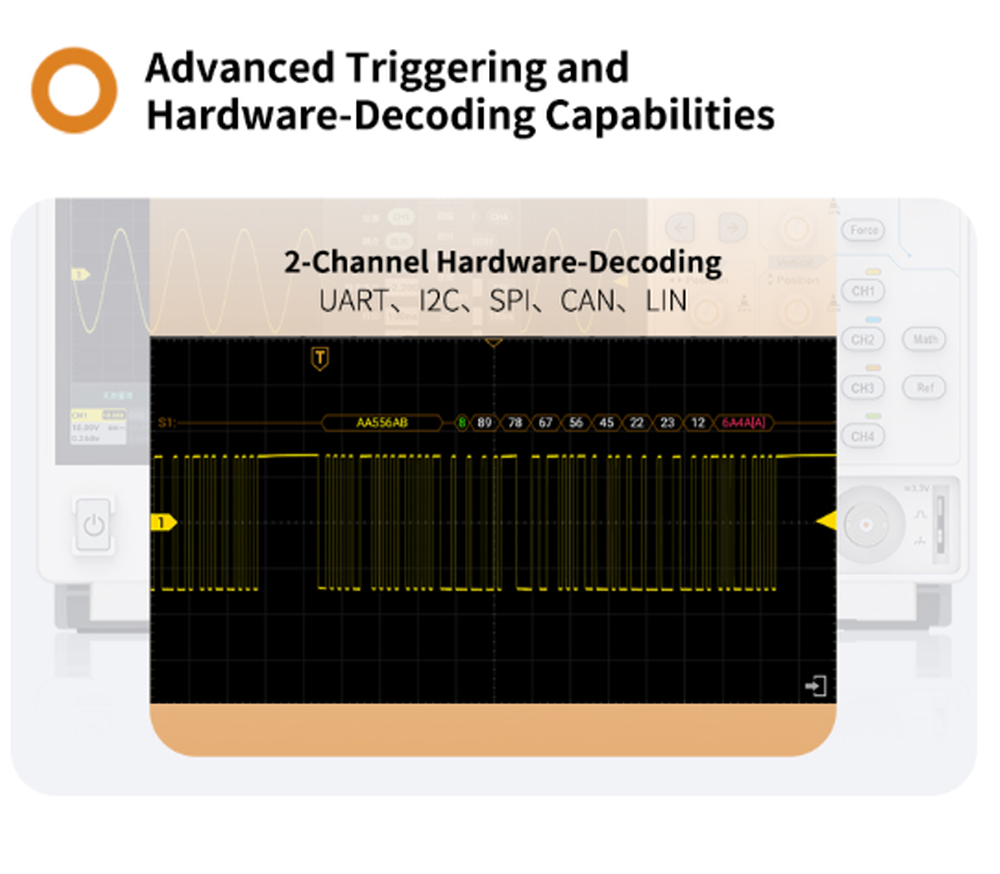

RS232/UART、I2C、SPI、CAN、LIN

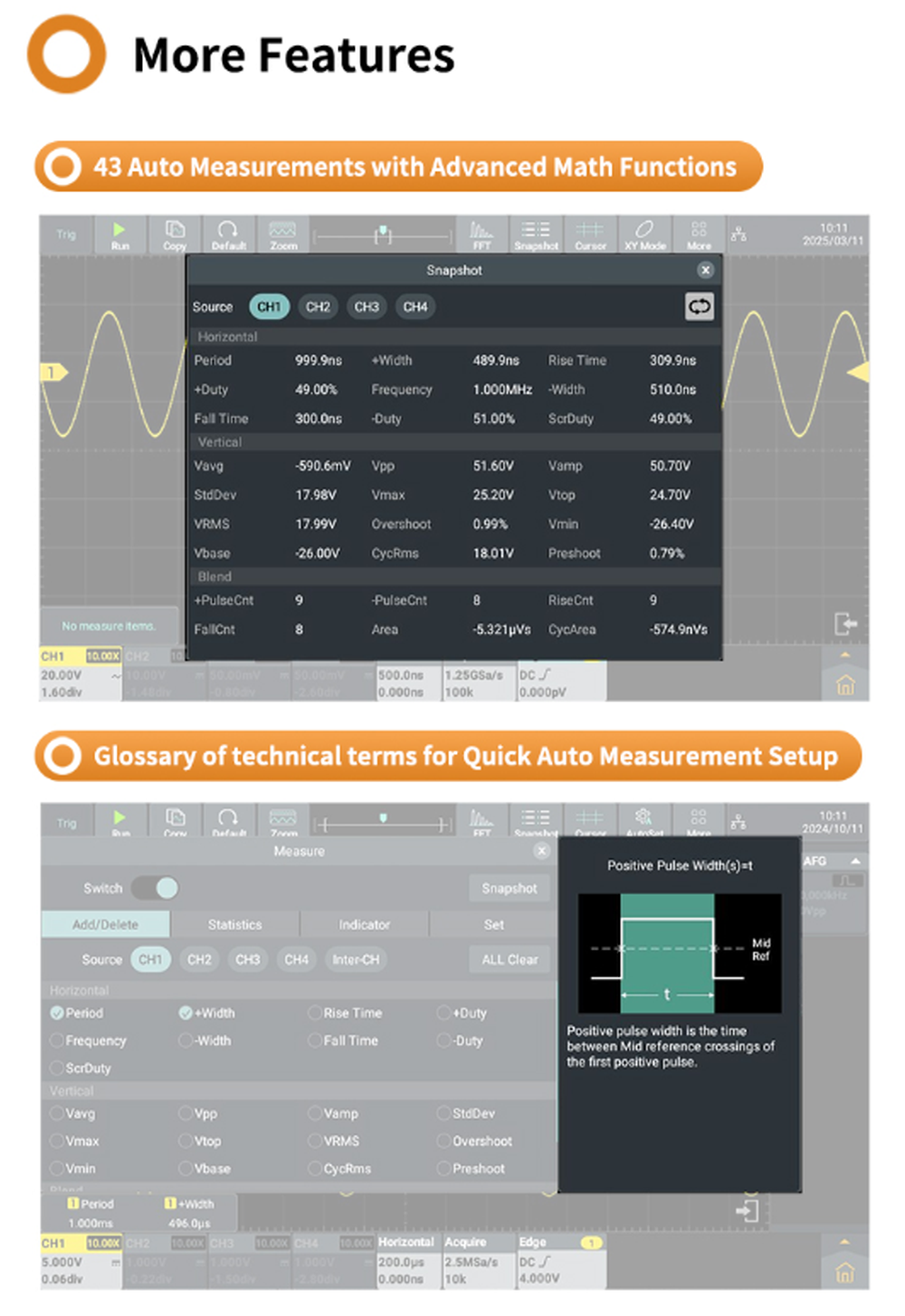

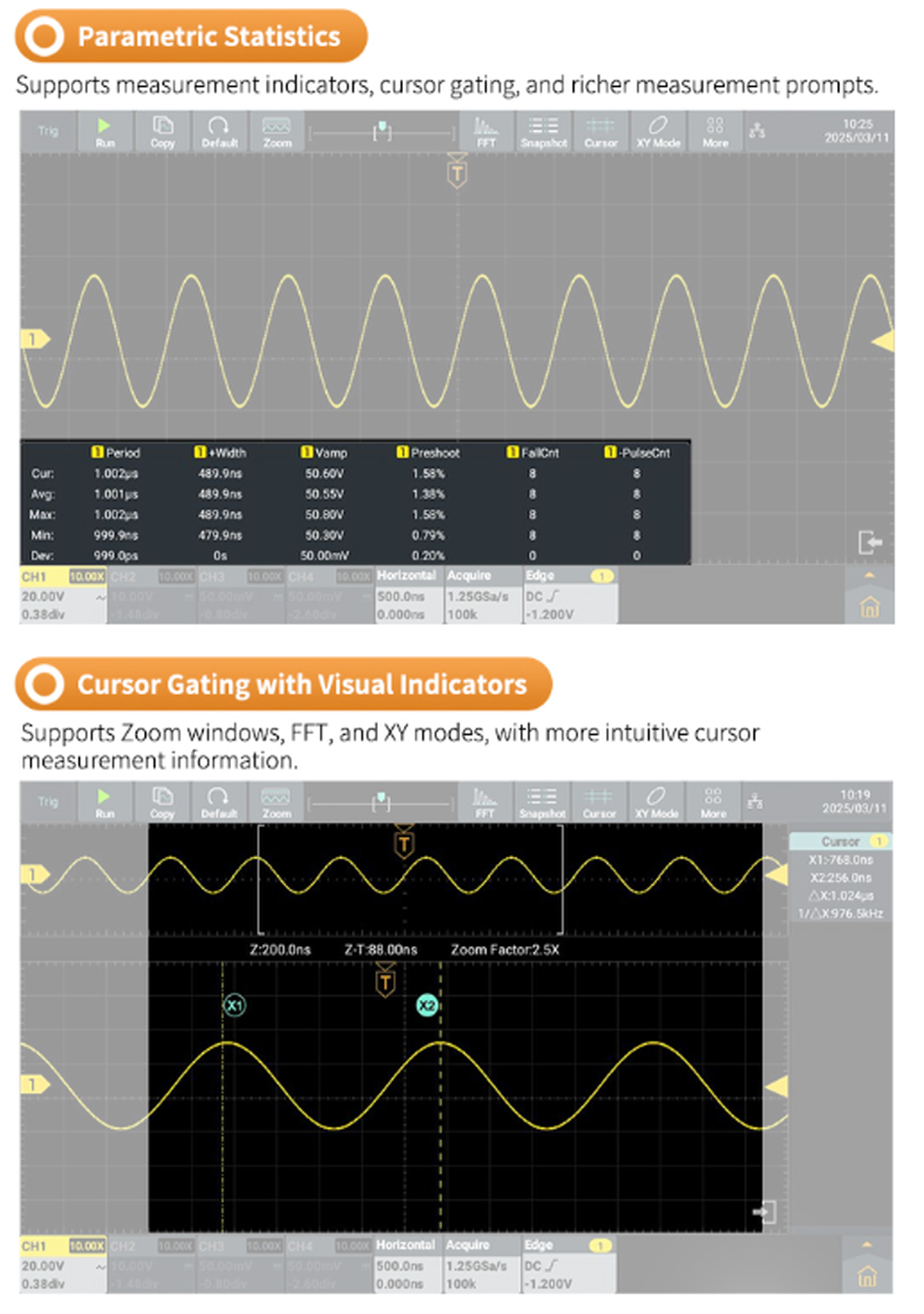

Auto measurement

Period, Frequency, +Width, -Width, Rise Time, Fall Time, Scr Duty, +Duty,-Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, +Pulse Cnt, -Pulse Cnt, Rise Cnt, Fall Cnt, Area, Cyc Area, Delay(A↑-B↑), Delay(A↑-B↓), Delay(A↓-B↑),Delay(A↓-B↓),
Phase(A↑-B↑), Phase(A↑-B↓), Phase(A↓-B↑), Phase(A↓-B↓), FRR(A↑-B↑),
FRF(A↑-B↓), FFR(A↓-B↑), FFF(A↓-B↓), LRR(A↑-B↑), LRF(A↑-B↓),
LFR(A↓-B↑), LFF(A↓-B↓）

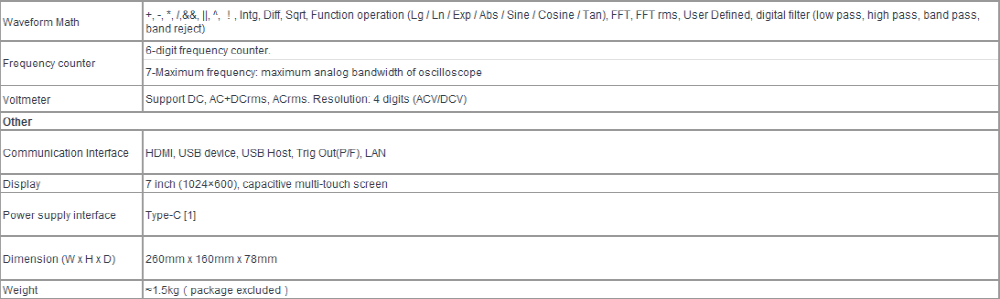

Waveform Math

+, -, *, /,&&, ||, ^, ！, Intg, Diff, Sqrt, Function operation (Lg / Ln / Exp / Abs / Sine / Cosine / Tan), FFT, FFT rms, User Defined, digital filter (low pass, high pass, band pass, band reject)

Frequency counter

6-digit frequency counter.

7-Maximum frequency: maximum analog bandwidth of oscilloscope

Voltmeter

Support DC, AC+DCrms, ACrms. Resolution: 4 digits (ACV/DCV)

Other

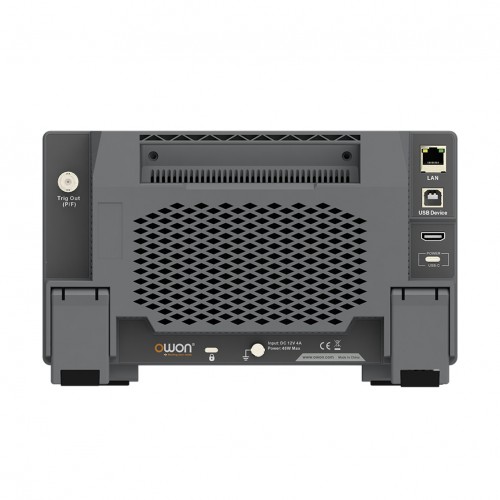

Communication Interface

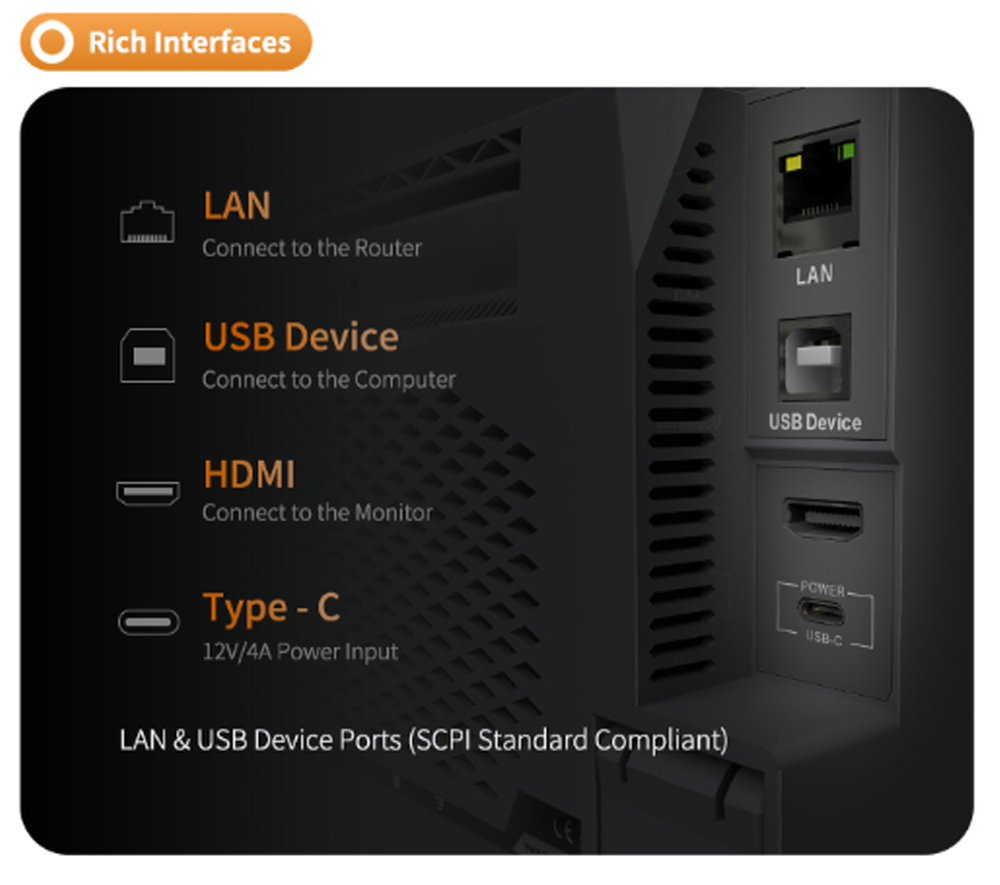

HDMI, USB device, USB Host, Trig Out(P/F), LAN

Display

7 inch (1024×600), capacitive multi-touch screen

Power supply interface

Type-C [1]

Dimension (W x H x D)

260mm x 160mm x 78mm

Weight

≈1.5kg（package excluded）
