프로그래밍 가능한 스위칭 DC 전원 공급기 UPW 시리즈는 광범위한 출력, 1.2kW ~ 100kW의 정격 전력, 최대 5000V의 정격 전압, 최대 10000A의 정격 전류를 커버합니다.
IGBT 모듈 조정 및 PWM 변조는 고효율, 높은 정확도 및 높은 안정성으로 UPW 시리즈를 용이하게 합니다. 높은 이득 증폭기 회로 설계로 빠른 응답으로 UPW 시리즈를 구성합니다. 회로 개선으로 더 강력한 간섭 방지 성능을 가져옵니다. 액티브 에어덕트 설계 및 최적화된 냉각 채널로 효과적으로 온도 상승을 줄입니다.
과전압 보호, 과전류 보호 및 과온도 보호는 UPW 시리즈와 부하를 예기치 않은 조건으로부터 안전하게 유지합니다. 더 복잡한 응용 분야를 위해 UPW 시리즈는 원격 ON/OFF 제어, PV 곡선 출력 등 많은 옵션 기능과 함께 사용할 수 있습니다.
UPW 시리즈는 고객 주문 시 제작 가능합니다. 자세한 사항은 문의 바랍니다.
[ 주요 특징 ]
* 최대 출력 전압 5000V, 최대 출력 전류 10000A
* IGBT 모듈 및 19인치 표준 사이즈 적용
* 전압 및 전류에 대한 4자리 LCD 디스플레이
* 정전압 및 정전류 작동, 자동 CV/CC 스위치
* 전면 패널 작동: 사전 설정된 전압 및 전류, 출력 ON/OFF
* 다중 보호: OVP, OCP, OTP 및 OLP
* 과도 응답 시간 5ms
* 시동 중 오버슈트 없음

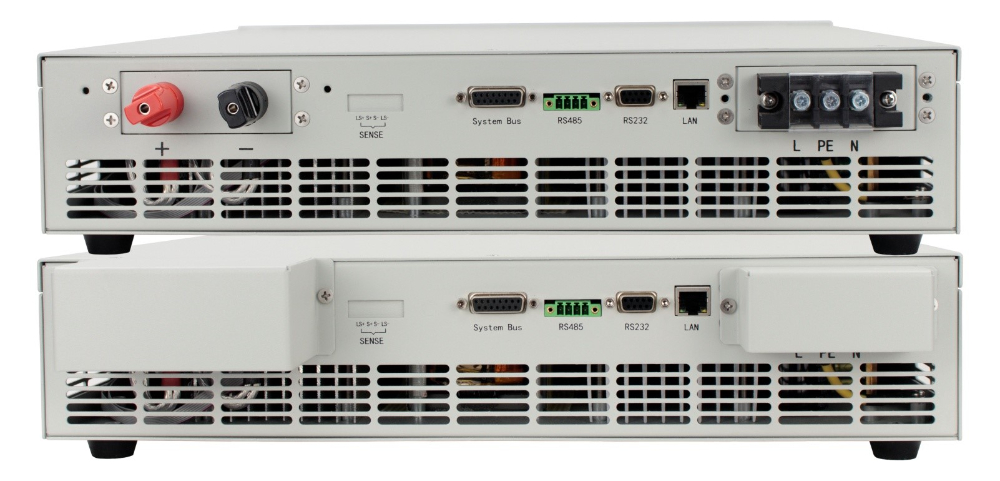

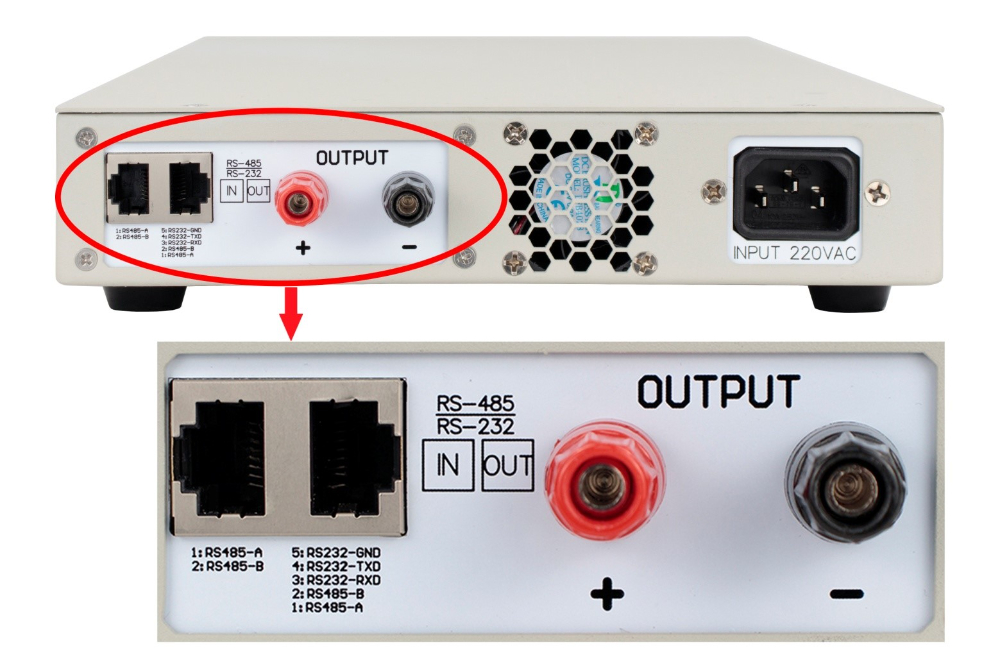

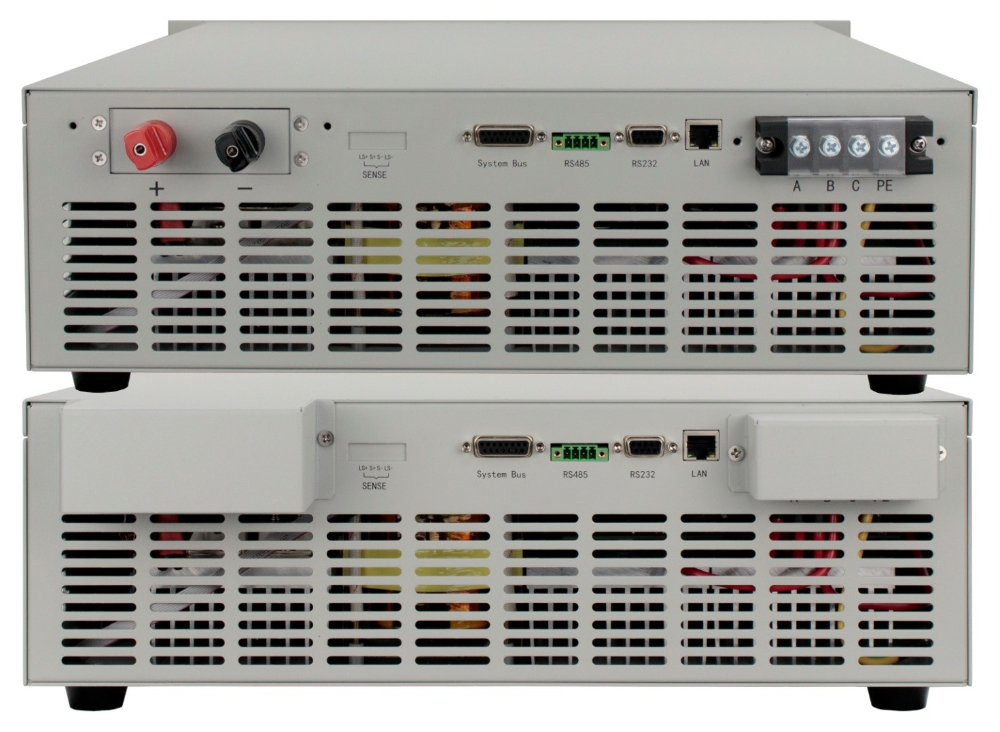

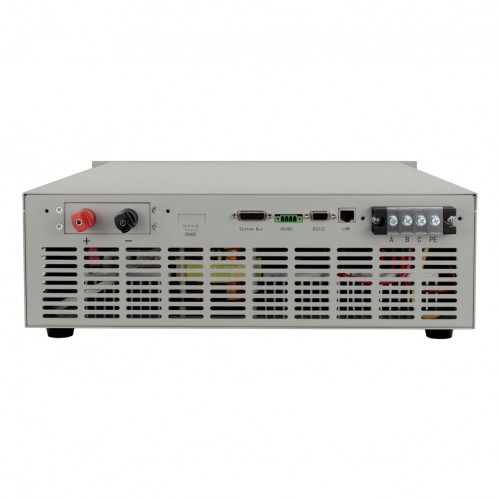

* 통신: RS232, RS485 및 LAN 인터페이스(1.2kW 및 1.8kW 모델에서는 LAN을 사용할 수 없음)
* 원격 감지 기능: 전압 강하를 보상합니다(300V 이하 모델에만 해당)
* 선택적 기능( 옵셔널 )
병렬 기능, 병렬 최대 8단위
리모컨: 출력 전압 및 전류 제어를 위한 0-5V, 0-10V 또는 4-20mA 신호
원격 ON/OFF 제어: 인터록 루프 또는 12V 입력 제어
역전류 보호: EUT로부터의 역전류에 의한 전원 공급의 손상으로부터 보호
역방향 극성 스위치: 양극 및 음극 출력 극성을 역방향으로 변경할 수 있도록 합니다
태양광 패널 시험을 위한 PV 곡선 출력
시스템 버스 인터페이스
사용자 지정 사양 및 기능 허용

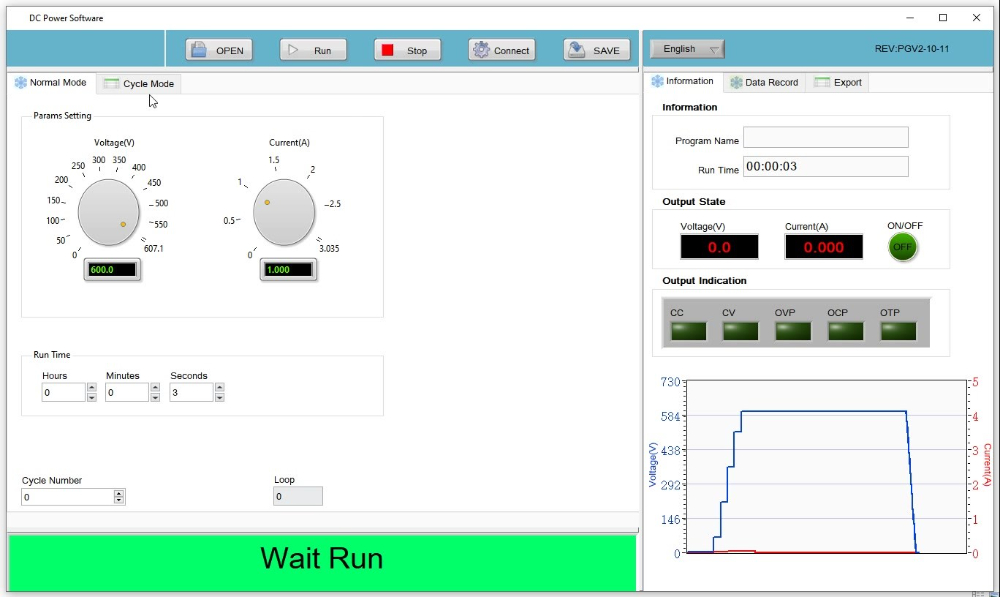

[ 무료 PC소프트웨어 ]

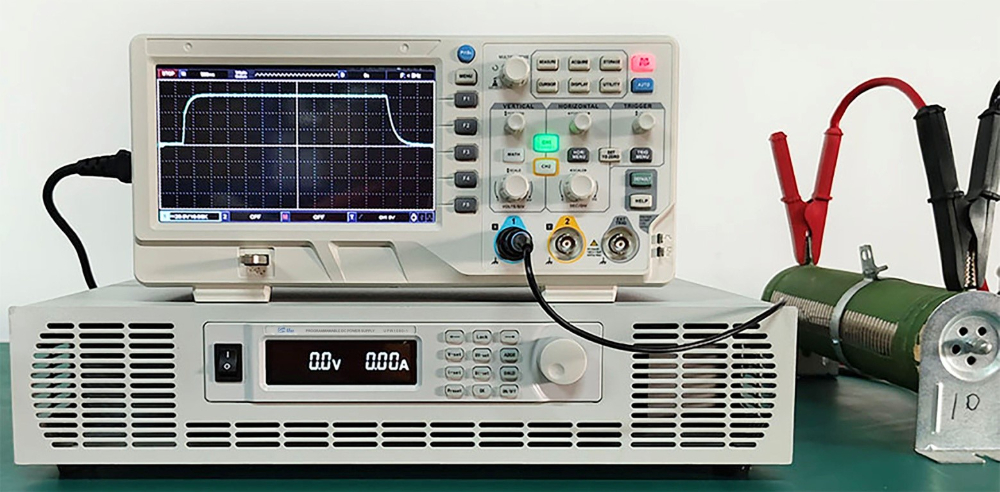

[ 시동 중 오버슈트 없음 ]

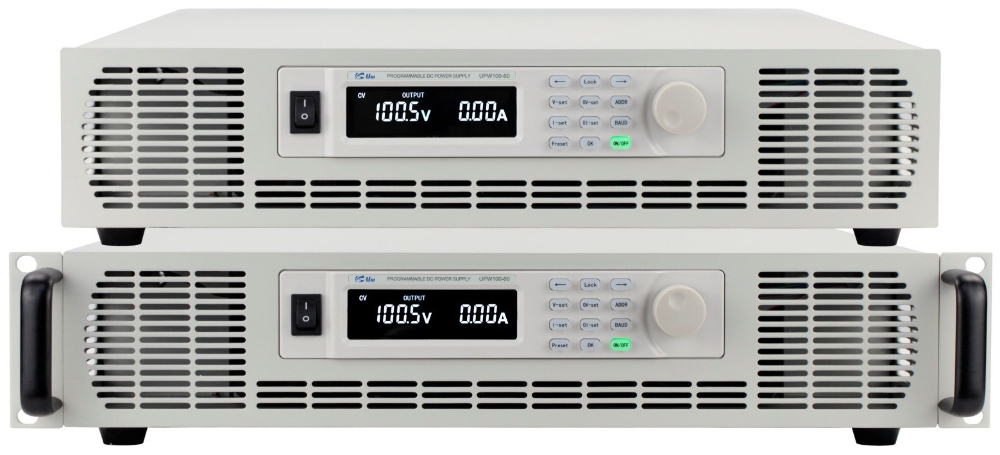

[ 1.2kW ~ 1.8kW 모델, cabinet size 1U half-width ]
[ 3.6kW ~6kW & 7.5kW 모델, cabinet size 2U ]

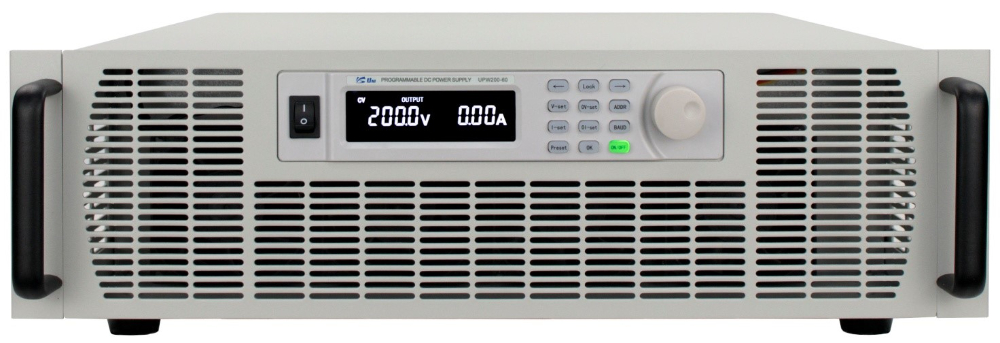

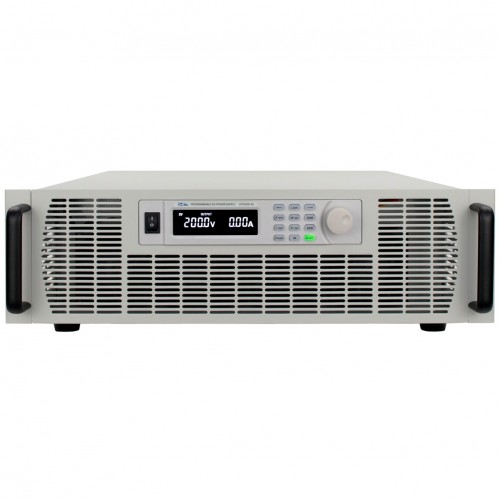

[ 12kW ~ 15kW 모델 cabinet size 3U ]
[ 주요 특징 ]
Model
DC Output
Line Regulation
Load Regulation
Ripple & Noise
Setting/Readback Accuracy
Resolution
Voltage
Current
CV
CC
CV
CC
CV (rms)
CC (rms)
CV
CC
V
A
Power 1kW to 1.8kW, 1U
half-width frame, Dimensions 218W*44H*435D mm, Weight approx 4.5kg, Input 1φ2W, 220V±10% 50Hz/60Hz
UPW30-40
0~30V
0~40A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+50mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.3%FS+30mA
0.01V
0.01A
UPW60-20
0~60V
0~20A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+50mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.3%FS+30mA
0.01V
0.01A
UPW100-12
0~100V
0~12A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.3%FS+10mA
0.1V
0.01A
UPW300-4
0~300V
0~4A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+10mA
0.1V
0.001A
UPW600-2
0~600V
0~2A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+10mA
0.1V
0.001A
UPW30-60
0~30V
0~60A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+50mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.3%FS+30mA
0.01V
0.01A
UPW60-30
0~60V
0~30A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+50mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.3%FS+30mA
0.01V
0.01A
UPW100-18
0~100V
0~18A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.3%FS+10mA
0.1V
0.01A
UPW150-10
0~150V
0~10A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+10mA
0.1V
0.001A
UPW300-6
0~300V
0~6A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+10mA
0.1V
0.001A
UPW600-3
0~600V
0~3A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+10mA
0.1V
0.001A
UPW1000-1
0~1000V
0~1A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+10mA
1V
0.001A
Power 3.6kW, 2U frame,
Dimensions 482W*88H*520D mm, Weight approx 14kg, Input 1φ2W, 220V±10% 50Hz/60Hz
UPW30-120
0~30V
0~120A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+50mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.3%FS+50mA
0.01V
0.1A
UPW60-60
0~60V
0~60A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.3%FS+50mA
0.01V
0.01A
UPW100-36
0~100V
0~36A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.3%FS+30mA
0.1V
0.01A
UPW200-18
0~200V
0~18A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+10mA
0.1V
0.01A
UPW300-12
0~300V
0~12A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+10mA
0.1V
0.01A
UPW600-6
0~600V
0~6A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+10mA
0.1V
0.001A
UPW1000-3
0~1000V
0~3A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.2%FS+100mV
≤0.3%FS+10mA
1V
0.001A
UPW2000-1
0~2000V
0~1A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.2%FS+100mV
≤0.3%FS+10mA
1V
0.001A
Power 6kW, 2U frame,
Dimensions 482W*88H*520D mm, Weight approx 15kg, Input 1φ2W, 220V±10% 50Hz/60Hz
UPW20-300
0~20V
0~300A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.5%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.5%FS+100mA
0.01V
0.1A
UPW30-200
0~30V
0~200A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.5%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.5%FS+100mA
0.01V
0.1A
UPW60-100
0~60V
0~100A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.3%FS+100mA
0.01V
0.1A
UPW100-60
0~100V
0~60A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.3%FS+100mA
0.1V
0.01A
UPW200-30
0~200V
0~30A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+10mA
0.1V
0.01A
UPW300-20
0~300V
0~20A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+10mA
0.1V
0.01A
UPW600-10
0~600V
0~10A
≤0.2%FS
≤0.2%FS
≤0.1%FS
≤0.1%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+10mA
0.1V
0.01A
UPW1000-6
0~1000V
0~6A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10Ma
≤0.2%FS+100Mv
≤0.3%FS+10Ma
1V
0.001A
Model
DC Output
Line Regulation
Load Regulation
Ripple & Noise
Setting/Readback Accuracy
Resolution
Voltage
Current
CV
CC
CV
CC
CV (rms)
CC (rms)
CV
CC
V
A
UPW30-250
0~30V
0~250A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.5%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.5%FS+100mA
0.01V
0.1A
UPW60-125
0~60V
0~125A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.5%FS+100mA
0.01V
0.1A
UPW150-50
0~150V
0~50A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.5%FS+30mA
0.1V
0.01A
UPW100-75
0~100V
0~75A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.5%FS+30mA
0.1V
0.01A
UPW300-25
0~300V
0~25A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+10mA
0.1V
0.01A
UPW600-12
0~600V
0~12A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+10mA
0.1V
0.01A
UPW1000-8
0~1000V
0~8A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.2%FS+100mV
≤0.3%FS+10mA
1V
0.001A
Power 12kW, 3U frame,
Dimensions 482W*132H*570D mm, Weight approx 25kg, Input 3φ4W, 380V±10% 50Hz/60Hz
UPW10-500
0~10V
0~500A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤1%FS+100mV
≤0.3%FS+10mA
≤0.1%F+20mV
≤0.5%FS+200mA
0.01V
0.1A
UPW10-1000
0~10V
0~1000A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤1%FS+100mV
≤0.3%FS+10mA
≤0.1%F+20mV
≤0.5%FS+200mA
0.01V
0.1A
UPW20-600
0~20V
0~600A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤1%FS+100mV
≤0.3%FS+10mA
≤0.1%F+20mV
≤0.5%FS+200mA
0.01V
0.1A
UPW30-400
0~30V
0~400A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤1%FS+100mV
≤0.3%FS+10mA
≤0.1%F+20mV
≤0.5%FS+200mA
0.01V
0.1A
UPW60-200
0~60V
0~200A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.5%FS+100mV
≤0.3%FS+10mA
≤0.1%F+20mV
≤0.5%FS+200mA
0.01V
0.1A
UPW100-120
0~100V
0~120A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+100mA
0.1V
0.1A
UPW200-60
0~200V
0~60A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+100mA
0.1V
0.1A
UPW300-40
0~300V
0~40A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+30mA
0.1V
0.01A
UPW400-30
0~400V
0~30A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.2%FS+100mV
≤0.3%
FS+10mA
0.1V
0.01A
UPW600-20
0~600V
0~20A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.2%FS+100mV
≤0.3%
FS+10mA
0.1V
0.01A
UPW800-15
0~800V
0~15A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.2%FS+100mV
≤0.3%
FS+10mA
0.1V
0.01A
UPW1000-12
0~1000V
0~12A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.2%FS+100mV
≤0.3% FS+10mA
1V
0.01A
Power 15kW, 3U frame,
Dimensions 482W*132H*570D mm, Weight approx 25kg, Input 3φ4W, 380V±10% 50Hz/60Hz
UPW30-500
0~30V
0~500A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤1%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.5%FS+200mA
0.01V
0.1A
UPW50-300
0~50V
0~300A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤1%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.5%FS+200mA
0.01V
0.1A
UPW60-250
0~60V
0~250A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤1%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.5%FS+200mA
0.01V
0.1A
UPW100-150
0~100V
0~150A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.5%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.5%FS+200mA
0.01V
0.1A
UPW150-100
0~150V
0~100A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.5%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+20mV
≤0.3%FS
100mA
0.1V
0.1A
UPW200-75
0~200V
0~75A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+30mA
0.1V
0.01A
UPW300-50
0~300V
0~50A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+30mA
0.1V
0.01A
UPW500-30
0~500V
0~30A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+30mA
0.1V
0.01A
UPW600-25
0~600V
0~25A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.1%FS+100mV
≤0.3%FS+30mA
0.1V
0.01A
UPW800-18
0~800V
0~18A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.2%FS+100mV
≤0.3%FS+10mA
0.1V
0.01A
UPW1000-15
0~1000V
0~15A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.2%FS+100mV
≤0.3%FS+10mA
1V
0.01A
UPW1500-10
0~1500V
0~10A
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.2%FS
≤0.3%FS+100mV
≤0.3%FS+10mA
≤0.2%FS+100mV
≤0.3%FS+10mA
1V
0.01A
Time drift: Voltage≤0.5%FS rms / Current≤1%FS
rms
Temperature drift: Voltage≤0.1%FS rms/℃ /
Current≤0.3%FS rms/℃
LOGIN
주문내역
CART(0)
자료실
고객센터
